Description
Optimized for Mixed Use Applications

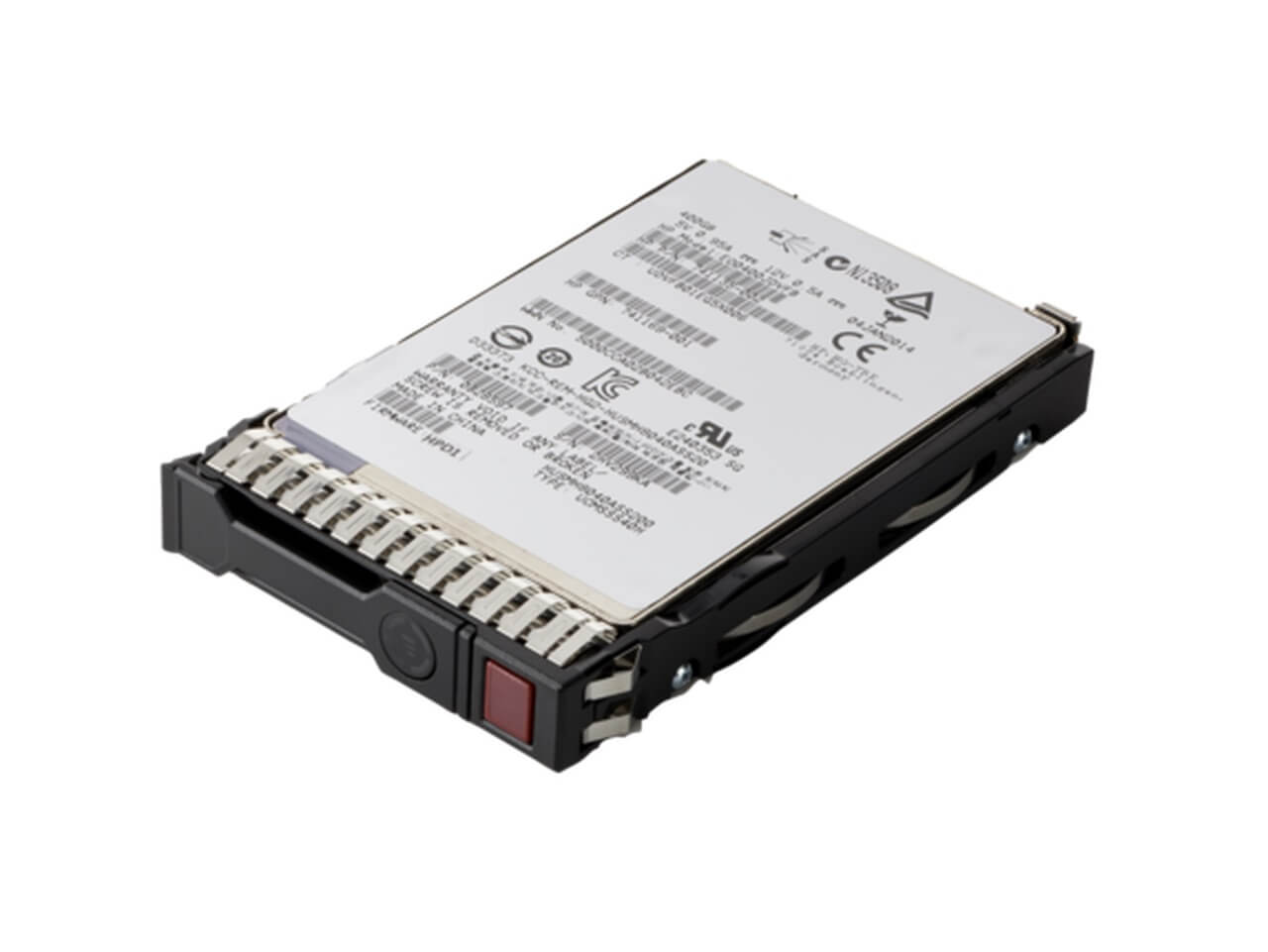

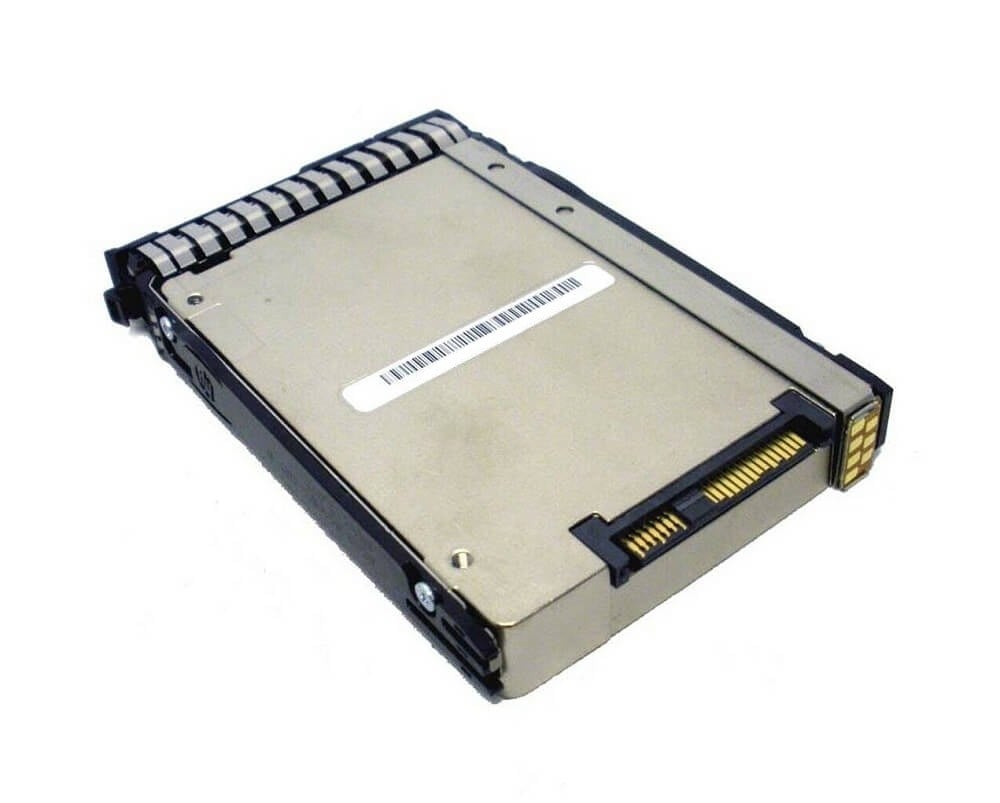

The HPE 800GB SAS 24GBPS SFF Mixed Use SC Solid State Drive (P26290-K21) is specifically designed for mixed use applications, meaning that it is suitable for a variety of workloads that have different read and write requirements.
This drive is optimized for a balanced performance and endurance, providing fast data transfer speeds of 24GB/s and high IOPS (Input/Output Operations per Second) for quick read and write access to data. It is ideal for applications that require fast storage access, such as databases, virtualized environments, and cloud computing.
Additionally, this drive features enhanced reliability and endurance for long-term performance and durability. It is designed for the harsh conditions of a 24/7 data center environment, with enhanced power loss protection, error correction, and data protection features.
The HPE 800GB SAS 24GBPS SFF Mixed Use SC Solid State Drive is optimized for mixed use applications, delivering a high level of performance, reliability, and endurance for a wide range of data center workloads.
Secure Scalability & Accessibility
Secure Scalability refers to the ability of a system to expand or change in size, capability, or complexity in a secure manner. In the context of the HPE P26290-K21 800GB SAS 24GBPS SFF Mixed Use SC Solid State Drive, secure scalability refers to the ability to scale up the storage capacity, performance, and functionality of the drive without compromising the security of the data stored on it.
Accessibility, on the other hand, refers to the ease with which the data stored on the drive can be accessed and used. In the context of the HPE 800GB SAS 24GBPS SFF Mixed Use SC Solid State Drive, accessibility refers to the ability to quickly and reliably access the data stored on the drive, regardless of its location, in a secure and controlled manner. This is achieved through the use of advanced security features, such as encryption, access control, and data backup and recovery, to ensure that the data stored on the drive remains secure and accessible at all times.
Improved Energy Efficiency
Improved energy efficiency refers to the reduction in the amount of energy used by a device or system. The HPE 800GB SAS 24GBPS SFF Mixed Use SC Solid State Drive (P26290-K21) has improved energy efficiency due to its solid-state design. Unlike traditional hard disk drives (HDD), solid-state drives (SSD) have no moving parts, which reduces the amount of energy required to access and transfer data. Additionally, SSDs consume less power when idle, which helps to lower the overall energy consumption of a system. This results in improved energy efficiency, which leads to lower energy costs, a reduced carbon footprint, and longer battery life for mobile devices.
General Information
- Manufacturer : HPE
- MPN : P26290-K21
- Spare Part Number: P37171-001
- Type : Internal Solid State Drive (SSD)
- SSD Type : SAS-24GBPS
- SKU: P26290-K21
Technical Information
- Capacity: 800 GB
- Form Factor: 2.5 inch SFF
- Interface: SAS 24GBPS
- NAND Flash Memory Type: Triple-level cell (TLC)
- Plug Type: Hot Pluggable
- Connectivity Type: Dual
- Carrier Type: Smart Carrier (SC)
- Workload Type: Mixed Use
- Bundled with: HPE SmartDrive Carrier (SC)
- Features: Digitally Signed Firmware (DS)
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
- Height: 15.00 mm(0.60 inch)
Performance
- Lifetime Writes (TB): 4280
- Endurance DWPD (Drive Writes Per Day): 3.00
- Drive Transfer Rate: 24 GBPS (external)
- MAX Seq. Reads Throughput (MiB/s): 1080
- MAX Seq. Writes Throughput (MiB/s): 1035
- Random Read Average Latency uSec (4KiB,Q1): 95
- Random Write Average Latency uSec (4KiB,Q1): 32
- Random Read IOPS (4KiB, Q=16): 150000
- Random Write IOPS (4KiB, Q=16): 125000
- MAX Random Read IOPS (4KiB): 173000@Q64
- MAX Random Write IOPS (4KiB): 130000@Q4
Expansion & Connectivity
- Interfaces: 1 x SAS 24 GB/S
- Compatible Bay: 2.5inch SFF
Power Consumption
- Idle Time: 2.80 Watt
- Random Read: 6.24 Watt
- Random Write: 6.24 Watt
- Sequential Read: 6.73 Watt
- Sequential Write: 8.32 Watt
- Random Read/Write: 6.24 Watt
- Maximum: 8.32 Watt
Dimension and Weight
- Height: 0.63 inch
- Width: 3.10 inch
- Depth: 5.45 inch
- Weight: 1.50 lbs
Compatibility
- HPE ProLiant Generation8 Generation9 Generation10 Servers
