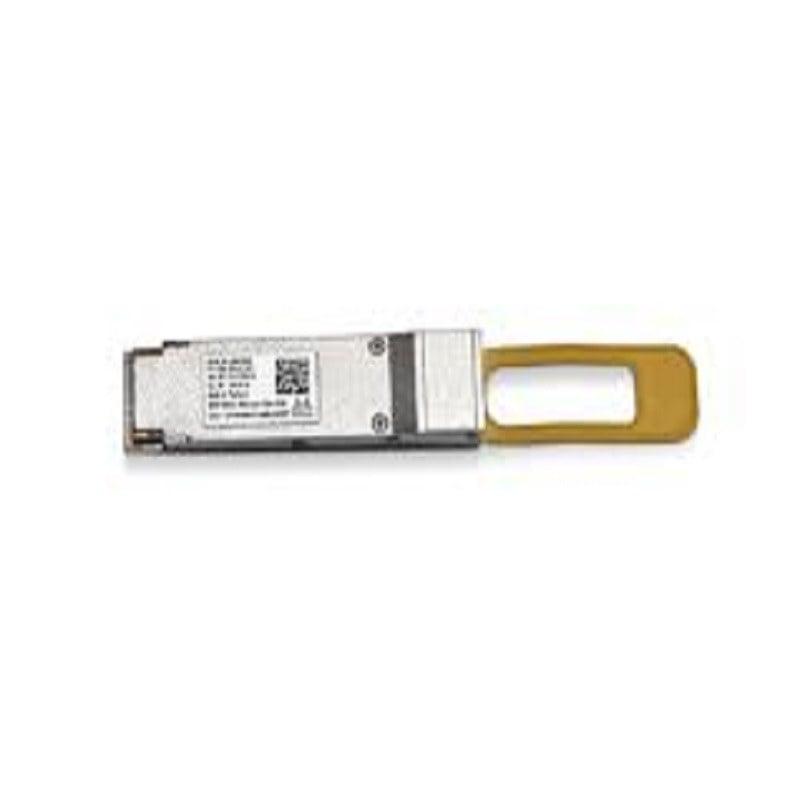

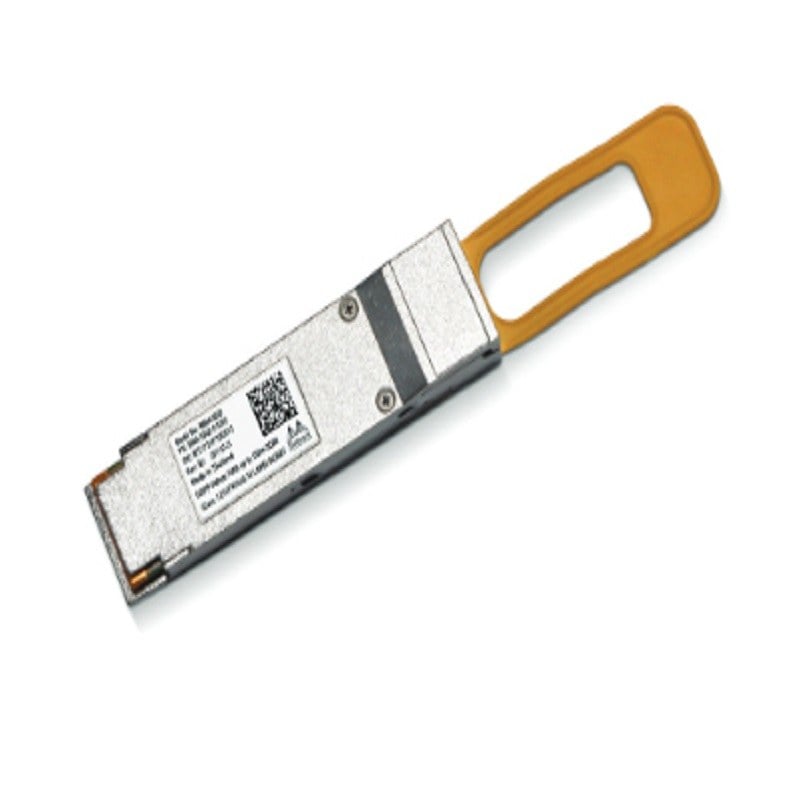

MMA1B00-C100D Mellanox 100GB/S QSFP28 Optical Transceiver | Refurbished

The MMA1B00-C100D Mellanox 100GB/S QSFP28 Optical Transceiver is a high-speed optical module that enables data transmission at a rate of 100Gbps. It is designed and developed by Mellanox Technologies, a leading provider of end-to-end Ethernet and InfiniBand interconnect solutions for data centers, cloud computing, and high-performance computing environments. The MMA1B00-C100D transceiver is one of Mellanox’s flagship products, offering high performance, reliability, and flexibility for a wide range of networking applications.

Overview of Optical Transceiver

The MMA1B00-C100D Mellanox 100GB/S QSFP28 Optical Transceiver is a compact, hot-pluggable transceiver module that uses four channels of 25Gbps data transmission. It complies with the QSFP28 MSA (Multi-Source Agreement) and is designed to work with any QSFP28 compatible device. The transceiver supports a transmission distance of up to 10 kilometers using single-mode fiber (SMF) and up to 100 meters using multi-mode fiber (MMF).

The MMA1B00-C100D transceiver uses wavelength division multiplexing (WDM) technology, which allows multiple signals to be transmitted simultaneously over a single fiber optic cable. It uses four different wavelengths (1271 nm, 1291 nm, 1311 nm, and 1331 nm) to transmit and receive data. This enables the transceiver to achieve a high data transfer rate of 100Gbps while minimizing the amount of cabling required.

Features

The MMA1B00-C100D Mellanox 100GB/S QSFP28 Optical Transceiver offers a range of features that make it a reliable and flexible choice for high-speed networking applications. Some of the key features of this transceiver include:

• High data transfer rate: The transceiver supports a data transfer rate of 100Gbps, which makes it ideal for high-bandwidth applications.
• Hot-pluggable: The transceiver is hot-pluggable, which means it can be inserted and removed from a device without powering off the device.
• Low power consumption: The transceiver has a low power consumption of less than 3.5 watts, which makes it energy-efficient and cost-effective.
• Wide temperature range: The transceiver operates over a wide temperature range of 0°C to 70°C, which makes it suitable for use in a variety of environments.
• Digital diagnostics: The transceiver supports digital diagnostics, which allows users to monitor and troubleshoot the performance of the transceiver.

Applications

The MMA1B00-C100D Mellanox 100GB/S QSFP28 Optical Transceiver is widely used in data centers, cloud computing environments, and high-performance computing applications. Some of the key applications of this transceiver include:

• High-speed networking: The transceiver is used to connect servers, switches, and other networking devices in high-speed networking environments.
• Data storage: The transceiver is used to connect storage systems and storage area networks (SANs) that require high bandwidth and low latency.
• High-performance computing: The transceiver is used in high-performance computing environments that require fast data transfer rates and low latency.
