Description
Product Overview of PCI Express 2.0 X8 SATA/SAS Raid Controller

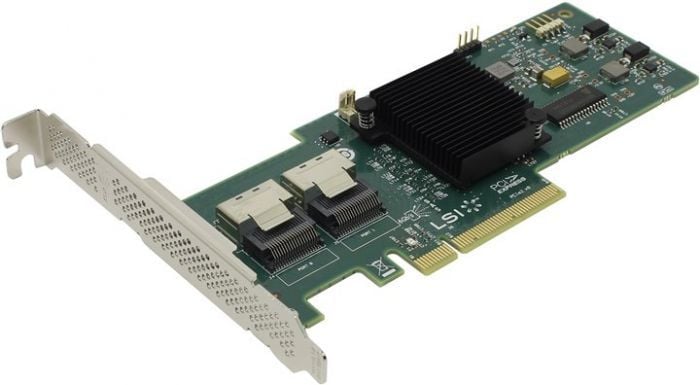

The 9240-8I LSI Logic MegaRAID is a RAID (redundant array of independent disks) controller that is designed to provide high-performance storage solutions. It is a PCI Express 2.0 X8 SAS/SATA RAID controller that supports up to eight SATA or SAS hard drives or solid-state drives (SSDs). This device is ideal for use in high-performance computing, database, and other storage-intensive applications. This article will provide a detailed explanation of the 9240-8I LSI Logic MegaRAID controller, its features, and its benefits.
RAID controller
A RAID controller is a device that manages multiple hard drives or solid-state drives (SSDs) in a RAID array. A RAID array is a group of hard drives or SSDs that are combined to create a single logical drive. The RAID controller is responsible for managing the data on the array and ensuring that the data is stored and accessed efficiently.
9240-8I LSI Logic MegaRAID
The 9240-8I LSI Logic MegaRAID is a high-performance RAID controller that is designed to provide reliable and efficient storage solutions for high-performance computing, database, and other storage-intensive applications. This controller supports up to eight SATA or SAS hard drives or SSDs and provides high-speed data transfer rates of up to 6Gb/s per port.
Features
The 9240-8I LSI Logic MegaRAID controller comes with several features that make it an ideal choice for high-performance storage solutions. These features include:
- Eight SATA or SAS Ports
The 9240-8I LSI Logic MegaRAID controller supports up to eight SATA or SAS hard drives or SSDs. This allows users to create a RAID array with up to eight drives, which provides increased storage capacity and performance.
- PCI Express 2.0 X8 Interface
The 9240-8I LSI Logic MegaRAID controller is designed to work with PCI Express 2.0 X8 slots. This provides high-speed data transfer rates of up to 6Gb/s per port, which ensures that data is transferred quickly and efficiently.
- RAID Levels
The 9240-8I LSI Logic MegaRAID controller supports several RAID levels, including RAID 0, RAID 1, RAID 10, and RAID 5. This allows users to create a RAID array that meets their specific needs, whether they need high performance, data redundancy, or a combination of both.
- CacheCade Pro 2.0 SSD Caching
The 9240-8I LSI Logic MegaRAID controller comes with CacheCade Pro 2.0 SSD caching technology. This technology allows users to use SSDs as a cache for frequently accessed data, which improves performance and reduces latency.
- Support for Multiple Operating Systems
The 9240-8I LSI Logic MegaRAID controller is compatible with multiple operating systems, including Windows, Linux, and VMware. This makes it a versatile choice for a wide range of applications.
General Information about the LSI Logic 9240-8I
- Manufacturer: LSI Logic
- Part Number or SKU# : 9240-8I
- Type: Controller
- Sub-Tyep: SAS-SATA
Technical Information
- Controller Interface Type: Serial Attached SCSI. Serial ATA/600
- Bus Type: PCI Express 2.0 X8
- Supported Devices: Hdds And SSD
- Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50, Raid Jbod
- Ports: 2 X SFF-8087 Mini SAS 600 – Serial Attached SCSI Internal
- Form Factor: Low-Profile Plug-In Card
- Platform Support: PC , Solaris
- And Uncomplicated Configuration Options.
- Device Type: SAS Raid Controller
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
