Description

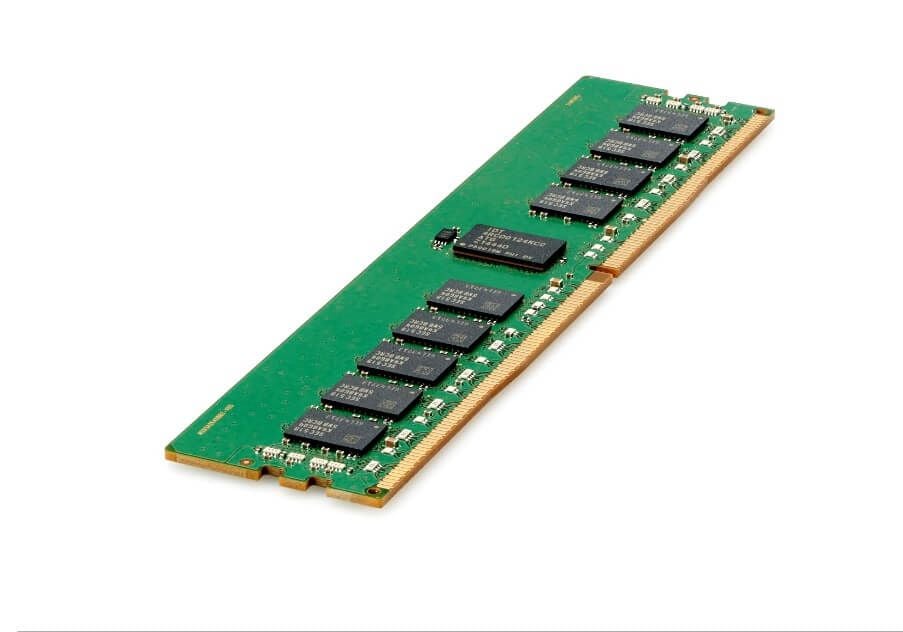

Overview of HPE 32GB 2666Mhz DDR4 RAM
The HPE 32GB 2666MHZ PC4-21300 Ecc Registered DDR4 SDRAM 288-Pin Ram is a high-performance memory module designed for use in servers and other enterprise-grade computer systems. It has a capacity of 32GB, which is suitable for large-scale data processing and storage tasks. The memory operates at a speed of 2666 MHz, which is faster than many standard DDR4 memory modules, resulting in improved system performance and responsiveness.
The memory is ECC (Error Correction Code) and registered, which means that it has additional logic built-in to detect and correct errors in the data stored in memory. This improves the reliability and stability of the system, making it less susceptible to data corruption and crashes. The 288-pin design of the memory module is a standard for DDR4 memory, and is compatible with a wide range of computer systems.
Benefits of ECC and Registered Memory
ECC (Error Correction Code) and registered memory are two important features that provide added reliability and stability to computer systems. The HPE 32GB 2666MHZ PC4-21300 Ecc Registered DDR4 SDRAM 288-Pin Ram is a memory module that includes both of these features.
ECC memory is a type of memory that includes additional logic to detect and correct errors in the data stored in memory. This is achieved by adding extra bits of data to each memory cell, which are used to check for errors and correct them if necessary. This improves the reliability and stability of the system, making it less susceptible to data corruption and crashes.
Registered memory, also known as buffered memory, is a type of memory that includes additional logic to buffer and control the flow of data between the memory and the memory controller. This improves the performance and stability of the system by reducing the load on the memory controller and allowing for higher memory speeds.
Together, these two features (ECC and registered memory) provide added reliability and stability to computer systems that demand high-availability and high-performance. For example, the HPE 32GB 2666MHZ PC4-21300 Ecc Registered DDR4 SDRAM 288-Pin Ram is designed for use in servers and other enterprise-grade computer systems that require high-availability and high-performance.
Power Consumption and Heat Dissipation
The P05590-B21 HPE 32GB 2666MHZ PC4-21300 Ecc Registered DDR4 SDRAM 288-Pin Ram is a type of memory module used in computer systems. The power consumption of this module is 1.2V, which means it requires 1.2 volts of power to operate. This is a standard voltage for DDR4 memory modules.
Heat dissipation is the process of removing the heat generated by the module. The amount of heat generated by the module will depend on various factors, such as the environment in which it is operating and the workload it is handling. Generally, the more power consumed by the module, the more heat it will generate. To dissipate the heat, it is recommended to have proper cooling measures such as heatsinks, fans, or liquid cooling systems in place.
It is important to ensure that the module is operating within a safe temperature range, as high temperatures can cause damage to the module and may result in data loss or system failure. It’s important to check with the manufacturer’s specifications and consult with the system’s thermal management to ensure that the module is operating within a safe temperature range.
General Information
- Brand: HPE
- Manufacturer Part Number: P05590-B21
- Type: Memory (RAM)
- Sub-Type: PC4-21300
- Product Name: 32GB DDR4 SDRAM Memory Module
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR4 SDRAM
- Number Of Modules: 1 X 32GB
- Bus Speed: 2666mhz DDR4-21300/PC4-2666v
- Data Integrity Check: ECC
- Signal Processing: Registered
- Cas Latency Timings: Cl19
- Rank Features: 2rx4
