Description
Details Specification

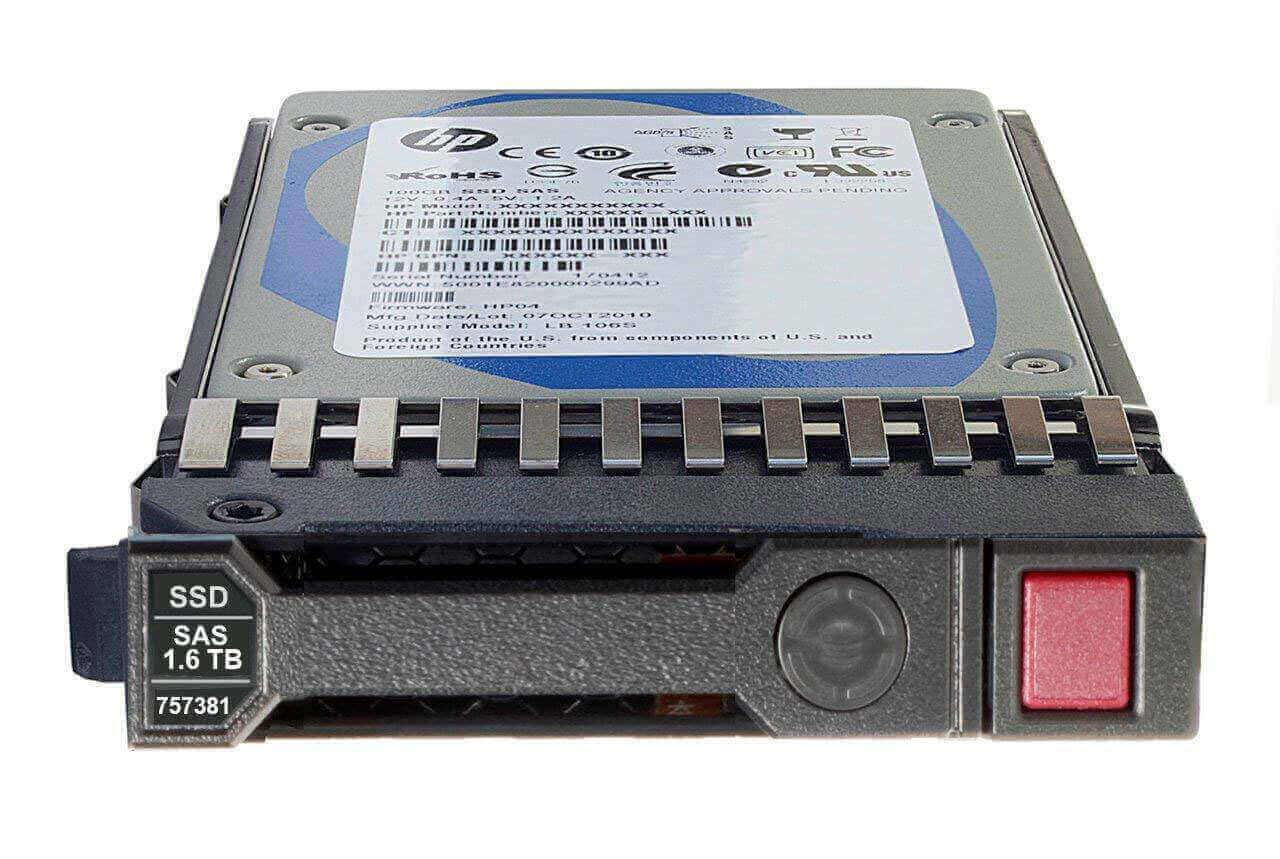

HPE P04533-H21 1.6TB SAS 12GBPS SSD is a solid-state drive (SSD) that is manufactured by Hewlett Packard Enterprise (HPE). This drive is designed for use in enterprise-level storage systems and servers.
The drive has a capacity of 1.6 terabytes (TB) and uses the SAS (Serial Attached SCSI) interface, which is a high-speed data transfer protocol commonly used in enterprise storage systems. It also supports a data transfer rate of 12 gigabytes per second (GBPS), which is much faster than traditional hard disk drives (HDD).
The drive also features advanced data protection and error correction technologies, such as end-to-end data protection and RAID protection, to ensure data integrity and reliability.
Mixed Use of 1.6TB SSD
The HPE P04533-H21 is a mixed-use solid-state drive (SSD) with a storage capacity of 1.6 terabytes (TB). It uses SAS (Serial Attached SCSI) interface with a data transfer rate of 12 gigabytes per second (GBps).
A mixed-use SSD is designed for a combination of read-intensive and write-intensive workloads, making it suitable for a wide range of applications such as databases, virtualization, and analytics.
The SAS interface provides a high-speed data transfer rate, making it suitable for high-performance applications that require fast data access. The 12GBps data transfer rate is also faster than the commonly used 6GBps SAS interface, allowing for even faster data access.
High-Demand Applications
HPE P04533-H21 1.6TB SAS 12GBPS SSD is a high-performance solid-state drive that is designed for use in high-demand applications. The drive is equipped with 1.6TB of storage capacity, making it ideal for storing large amounts of data. It also features a SAS interface, which is a high-speed data transfer protocol that is commonly used in enterprise-level storage systems.
The drive also has a 12GBPS data transfer rate, which is significantly faster than traditional hard drives. This makes it ideal for applications that require fast data access, such as databases, virtualization, and big data analytics. The drive also has a low latency, which means that it can respond quickly to read and write requests, making it ideal for applications that require real-time processing.
General Information
- Manufacturer: Hewlett Packard Enterprise (HPE)
- MPN: P04533-H21
- Spare Part Number: P06580-001
- Model Number: MO001600JWTBT
- Assembly Number: P04174-003
- SKU: P04533-H21
- Type: Hot-Swap Solid State Drive
- SSD Type: SAS-12GBPS
Technical Information
- Capacity: 1.6 TB
- Form Factor: 2.5inch SFF
- NAND Flash Memory Type: Multi-level cell (MLC)
- Plug Type: Hot Pluggable
- Carrier Type: Smart Carrier (SC)
- Workload Type: Mixed-Use
- Features: Digitally Signed Firmware
- Bundled With: HPE Smart Carrier (SC)
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
- Lifetime Writes: 8760
- Endurance DWPD (Drive Writes Per Day): 3
- Drive Transfer Rate: 12 GB/Sec (External)
- Random Read IOPS (4KiB, Q=16): 109000
- Max Random Read IOPS (4KiB): 165000@Q32
- Random Write IOPS (4KiB, Q=16): 105000
- Max Random Write IOPS (4KiB): 105000@16
Power Consumption
- Idle Time: 5.00 Watts
- Random Read: 6.00 Watts
- Random Write: 6.00 Watts
- Sequential Read: 6.98 Watts
- Sequential Write: 6.98 Watts
- Random Read/Write: 5.43 Watts
- Maximum: 8.98 Watts
Dimensions & Weight
- Height: 0.63 inch
- Width: 3.10 inch
- Depth: 5.45 inch
- Weight: 1.50 lbs
Compatibility Information
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)
- HPE ProLiant DL Series: DL325 Gen10 (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10
- Network Choice (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10
- Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)
- HPE ProLiant DX Series: DX380 Gen10 (2.5 inch)
- HPE ProLiant ML Series: ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 High Performance (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 SMB (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Special Server (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
- HPE Synergy 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch), 680 Gen9 4S-EX Compute Module (2.5 inch)
