Troubleshooting Common Issues with the Adapter

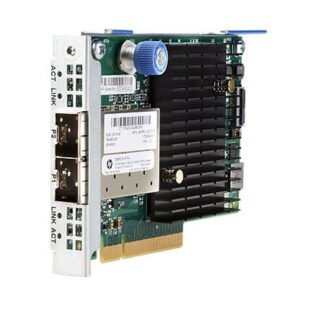

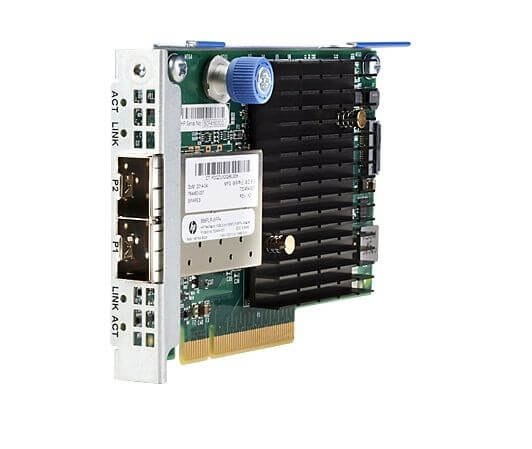

The HPE FlexFabric 10GB 2-Port 556FLR-SFP+ Adapter is a network interface card designed to provide high-speed connectivity for HPE servers. It supports optical fiber connectivity and is compatible with the PCI Express v3.0 (Gen 3) x8 interface.
Some common issues that may arise with this adapter are related to the optical fiber connectivity. Here are some troubleshooting steps to help you identify and resolve these issues:
- Check the physical connections: Make sure that the optical fiber cables are securely plugged into the adapter’s SFP+ ports and that the other end of the cable is properly connected to the network switch or other networking equipment. If the cable is loose or disconnected, reseat it and verify that the connection is secure.
- Check the fiber optic transceiver: The adapter uses SFP+ transceivers to convert the optical signal into an electrical signal that can be processed by the adapter. Make sure that the transceivers are properly installed in the SFP+ ports and that they are compatible with the optical fiber cables being used. If the transceivers are not working properly, replace them with a known-good unit and verify that the issue is resolved.
- Check the adapter configuration: Verify that the adapter is configured correctly in the server’s BIOS and operating system. Make sure that the correct drivers and firmware are installed and that the adapter’s settings (such as speed and duplex mode) are configured correctly.
- Check the network infrastructure: If the issue persists, check the network switch or other networking equipment to verify that it is configured correctly and that the optical fiber connections are working properly. You may need to use network diagnostic tools to identify any issues with the network infrastructure.
By following these troubleshooting steps, you should be able to identify and resolve most common issues with the HPE FlexFabric 10GB 2-Port 556FLR-SFP+ Adapter’s optical fiber connectivity.
Comparison with Similar HPE Adapter Models
The 764460-001 HPE FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter is a network interface card (NIC) designed by Hewlett Packard Enterprise (HPE) for servers and other devices that require high-speed network connectivity. This adapter supports a 10 Gigabit Ethernet (10GbE) network and has two SFP+ ports for optical fiber connections. It is designed to be installed in a PCI Express (PCIe) slot on a server or workstation and is compatible with PCIe version 3.0 (Gen 3) with x8 lanes.
When compared to other HPE adapter models, the 764460-001 offers several advantages:
- Two SFP+ ports – The 764460-001 offers two SFP+ ports, allowing for redundant or multipath connections to the network. This is useful for high availability or load balancing scenarios.
- Optical Fiber connectivity – The 764460-001 supports optical fiber connectivity, allowing for longer distance connections compared to copper-based cables.
- PCIe 3.0 support – The 764460-001 is designed to be used with PCIe version 3.0, which offers higher bandwidth and improved performance compared to earlier versions.
Other HPE adapter models that are similar to the 764460-001 include:
- HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter – This adapter also supports two SFP+ ports for optical fiber connectivity, but it is designed to be used with PCIe version 2.0.
- HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter – This adapter also supports two SFP+ ports for optical fiber connectivity, but it is designed to be used with PCIe version 2.0 and has a lower maximum throughput compared to the 764460-001.
- HPE Ethernet 10Gb 2-port 530SFP+ Adapter – This adapter supports two SFP+ ports for optical fiber connectivity and is designed to be used with PCIe version 2.0, but it has a lower maximum throughput compared to the 764460-001 and is designed for use with select HPE servers only.
Data Protection and Security
The 764460-001 is an HPE FlexFabric 10GB 2-port 556FLR-SFP+ Adapter designed to provide high-speed connectivity for servers or other network devices. It connects to the host system via PCI Express v3.0 (Gen 3) x8 interface, which provides ample bandwidth for data transfer.
The adapter supports optical fiber connections and uses SFP+ transceivers to allow flexible network configurations. This makes it suitable for use in a variety of data center environments where high-speed networking is required.
In terms of data protection and security, the adapter supports various features such as VLAN tagging, which allows for traffic separation and improves network security. It also supports advanced encryption techniques like AES-256, which can help protect sensitive data in transit.
General Information
- Manufacturer: HPE
- Manufacturer Part Number: 764460-001
- Type: Networking
- Sub-Type: 2 Ports
- Device Type : Network Adapter
- Interface (Bus) Type : Pci Express 3.0 X8
- Pci Specification Revision : Pcie 3.0
Networking
- Connectivity Technology : Wired
- Data Link Protocol : 10 Gige
- Data Transfer Rate : 10 GBPS
- Features : Auto-Negotiation, Wake On Lan (Wol), Jumbo Frames Support, Pxe Support, Large Send Offload (Lso), Receive Side Scaling (Rss)
- Compliant Standards : IEEE 802.1q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (Lacp), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1qau
Processor / Memory
- Processor : 1 – Emulex
- Ram : 128 Mb
