Description
Key Features and Benefits of the HPE Smart Array P830

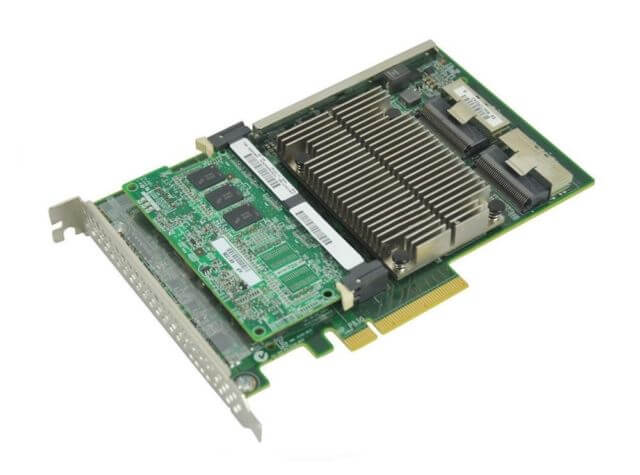

The HPE Smart Array P830 PCIE 3 X8 6GB/SEC SAS Controller Card (7279637-001) is a high-performance SAS controller card that offers the following key features and benefits:
- Advanced data protection: The HPE Smart Array P830 card supports advanced data protection features, including RAID levels 0, 1, 5, 6, 10, 50, and 60, to ensure that your data is secure and protected against data loss in the event of a drive failure.
- High-performance SAS interface: With a 6GB/s SAS interface, the HPE Smart Array P830 card provides fast data transfer rates and improved system performance.
- Large memory buffer: The HPE Smart Array P830 card features a large memory buffer, which helps to improve overall system performance and reduce the load on the server’s CPU.
- Flexible and scalable: The HPE Smart Array P830 card supports up to 256 SATA or SAS drives and provides scalable performance to meet the growing storage needs of your data center.
- Easy to manage: The HPE Smart Array P830 card is easy to manage, with a user-friendly graphical interface and support for HPE Systems Management tools, such as HPE Smart Update Manager, HPE Systems Manager, and HPE OneView.
- Reliable and durable: The HPE Smart Array P830 card is built to last, with a robust design that is tested to withstand the harsh conditions of the data center environment.
Advanced Data Protection
The HPE Smart Array P830 Controller Card provides advanced data protection through the following features:
- RAID levels: The HPE Smart Array P830 supports various RAID levels such as 0, 1, 5, 6, 10, 50, and 60 to provide data protection against drive failures and data loss.
- Online Spare: This feature automatically replaces a failed drive with a spare drive without affecting the data on the array.
- Advanced Data Mirroring: This feature provides real-time data replication between two physical drives to protect against data loss.
- Drive Write Cache Protection: The HPE Smart Array P830 has a battery-backed write cache which protects data in case of a power failure.
- Drive Encryption: The controller supports drive encryption, which protects data stored on the drives even if they are physically removed from the server.
- Snapshot Support: The controller supports Snapshot technology, which allows you to take a point-in-time copy of your data and store it on a separate drive, providing protection against data loss.
- Remote Snapshot: The HPE Smart Array P830 supports remote snapshot, which allows you to take a snapshot of the data on the server and store it on a remote storage device for data protection.
It is important to note that data protection solutions may vary depending on the configuration of the HPE Smart Array P830 and the environment in which it is used. It is recommended to consult with a qualified IT professional or HPE representative for recommendations on the best data protection solution for your specific needs.
Operating System Compatibility
The HPE Smart Array P830 PCIE 3 X8 6GB/SEC SAS Controller Card (729637-001) is compatible with the following operating systems:
- Windows Server 2012 R2 and later
- Windows Server 2016 and later
- Red Hat Enterprise Linux (RHEL) 7.x and later
- SUSE Linux Enterprise Server (SLES) 11 SP3 and later
- VMware vSphere 6.0 and later
It is important to note that the operating system compatibility may vary based on the specific version and the hardware configuration of the server. It is recommended to check the operating system compatibility before purchasing the HPE Smart Array P830 Controller Card.
General Information
- Manufacturer : HPE
- MPN : 729637-001
- Type : Controller
- Sub-Type : SAS Controller
Technical Information
- Device Type : Storage Controller (Raid) – Plug-In Card
- Host Bus : PCIE 3.0 X8
- Interface : SATA 6GB/S / SAS 12GB/S
- Data Transfer Rate : 1.2 GBPS
- Supported Devices : Hard Drive, Disk Array (Raid)
- Channel Qty : 16
- Max Storage Devices Qty : 16
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
