Description
Benefits of 5GBPS PoE+ Technology
The 5GBPS PoE+ technology has several benefits over traditional PoE (Power over Ethernet) solutions:
- Higher Bandwidth: 5GBPS PoE+ supports higher bandwidth, which allows for faster transmission of large amounts of data.
- Increased Power Delivery: PoE+ provides up to 30W of power per port, which is sufficient to power high-power devices such as high-definition IP cameras, wireless access points, and VoIP phones.
- Easy Deployment: With PoE+ technology, network devices can be powered over the same Ethernet cable used for data transmission, eliminating the need for additional power cables and reducing the overall deployment costs.
- Enhanced Network Flexibility: The 5GBPS PoE+ technology enables the deployment of devices in areas where power outlets are not available or accessible, which can increase network flexibility.
- Improved Reliability: PoE+ provides a more reliable power source for network devices, as it eliminates the risk of power interruption caused by power outages or accidental unplugging.
- Energy Efficiency: PoE+ switches are more energy-efficient as they can power multiple devices from a single power source, reducing the need for multiple power adapters and reducing energy consumption.
Port Configuration
Port configuration refers to the process of setting up and configuring the various parameters and settings of a network switch’s ports. This includes setting the speed, duplex mode, VLAN membership, Quality of Service (QoS), security settings, and other parameters to optimize network performance and security.
Some key aspects of port configuration include:
- Speed and Duplex: Port speed refers to the rate at which data is transmitted over a network, while duplex mode refers to the method of data transmission, either full-duplex (simultaneous bidirectional communication) or half-duplex (one-way communication at a time).
- VLAN Membership: Virtual Local Area Networks (VLANs) allow network administrators to logically segment a network into smaller sub-networks. Port configuration allows administrators to assign VLAN membership to switch ports, which can improve network security and performance.
- Quality of Service (QoS): QoS is a set of technologies that prioritize network traffic based on different criteria, such as application, user, or device. Port configuration allows administrators to set QoS parameters, such as traffic prioritization, to ensure critical network traffic is given higher priority over less critical traffic.
- Security Settings: Port configuration also includes setting security parameters, such as access control lists (ACLs), to prevent unauthorized access to the network.
- Link Aggregation: Link aggregation, also known as port trunking or bonding, allows multiple physical ports to be combined into a single logical port, providing increased bandwidth and increased network redundancy.
Network Security Management
Network security management refers to the set of processes and technologies used to protect a network from unauthorized access, theft of data, and other security threats. It includes implementing security policies, technologies, and practices to ensure the confidentiality, integrity, and availability of network resources.
Some key aspects of network security management include:
- Access Control: Access control refers to the methods used to restrict and monitor access to network resources. This can include user authentication, authorization, and accounting, as well as firewalls, intrusion detection and prevention systems, and other security technologies.
- Data Encryption: Data encryption is the process of converting plaintext into ciphertext to protect sensitive information from unauthorized access. Network security management includes implementing encryption technologies, such as SSL, TLS, and VPN, to secure network communications and protect sensitive data.
- Firewall: A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. Network security management includes configuring and maintaining firewalls to protect against unauthorized access and malicious traffic.
- Intrusion Detection and Prevention: Intrusion detection and prevention systems monitor network traffic for signs of malicious activity and take action to prevent or block it. Network security management includes implementing and maintaining intrusion detection and prevention systems to detect and respond to security threats in real-time.
- Vulnerability Management: Vulnerability management is the process of identifying, evaluating, and addressing security vulnerabilities in a network. Network security management includes performing regular vulnerability scans and implementing patches and security updates to remediate identified vulnerabilities.
- Incident Response: Incident response refers to the set of procedures and technologies used to respond to and recover from security incidents, such as data breaches and network attacks. Network security management includes having a well-defined incident response plan in place to quickly and effectively respond to security incidents.

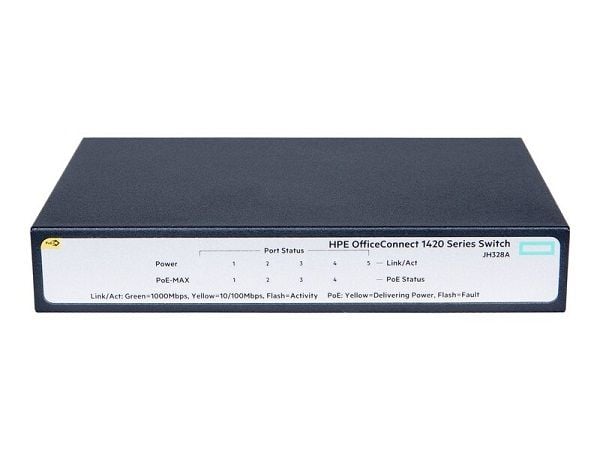

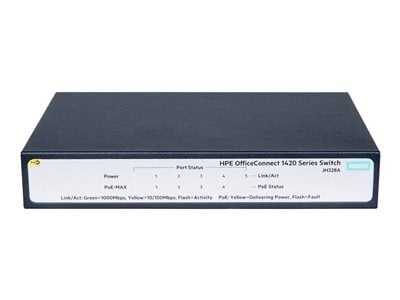

General Information about the HP JH328-61001
- Manufacturer: HP
- Part Number or SKU# JH328-61001
- Product Type : Networking
- Product Name : 5 Ports Switch
Technical Specifications for HP 5 Ports Switch
- Enclosure Type : Desktop, Rack-Mountable 1u
- Subtype : Gigabit Ethernet
- Ports : 5 X 10/100/1000
- Power Over Ethernet (PoE) : PoE+
- Performance : Switching Capacity : 10 GBPS ¦ Throughput (64-Byte Packet Size) : 7.4 MPPS ¦ Latency (100 MBPS) : 3 µs ¦ Latency (1000base-T) : 2.6 µs
- Mac Address Table Size : 2048 Entries
- Jumbo Frame Support : 9216 Bytes
- Features : Flow Control, Full Duplex Capability, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Half Duplex Mode, Quality Of Service (QOS), FANLESS, Diffserv Code Point (Dscp) Support
- Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power : Ac 120/230 V ( 50/60 Hz ) 300 MA
- Flash Memory : 1 MB
Expansion / Connectivity
- Interfaces : 5 X 1000base-T – Rj-45
- Power Device : Internal Power Supply
- Voltage Required : Ac 120/230 V ( 50/60 Hz )
- Electric Current Required : 300 Ma
- Power Consumption Operational : 40 Watt
