Description
Advanced Security Features

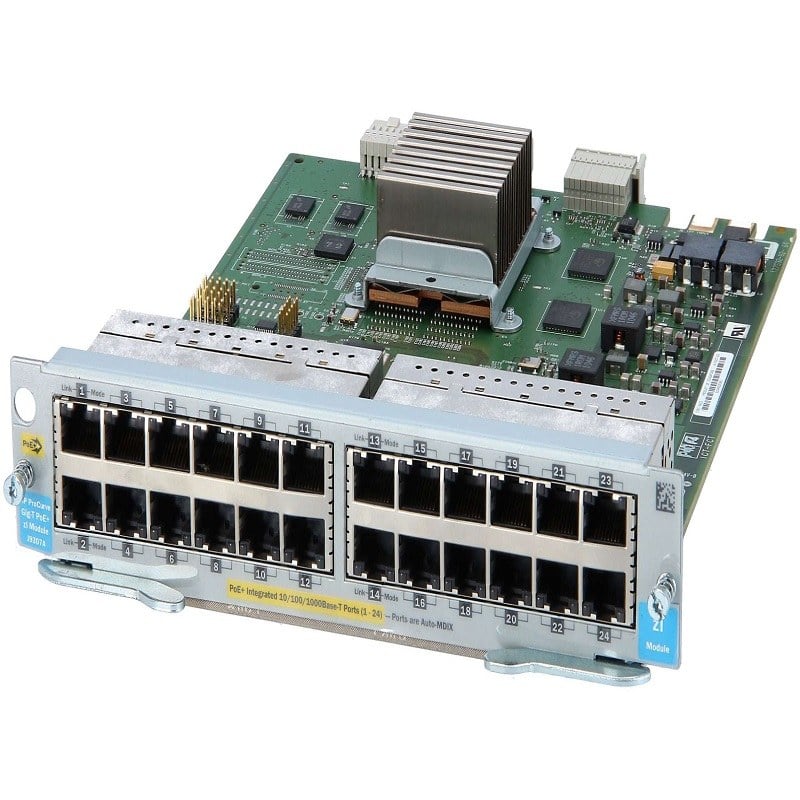

The J9307A HPE ProCurve 24 Port 10/100/1000 PoE zl Expansion Module is a networking device that expands the capacity of an HPE ProCurve switch. It features 24 ports that support 10/100/1000 Mbps speeds and Power over Ethernet (PoE) capabilities. This allows the switch to power connected devices such as IP phones, wireless access points, and security cameras.
The module also includes advanced security features to protect network devices and data. These features include:
- Access Control Lists (ACLs): Allows administrators to control access to specific network resources based on user or device attributes.
- Quality of Service (QoS): Prioritizes network traffic to ensure critical applications receive the bandwidth they need.
- VLANs: Segments the network into virtual networks to improve security and network management.
- Port-based Authentication: Allows only authorized devices to connect to the network.
- Advanced Routing Protocols: Provides support for routing protocols such as OSPF and BGP for more efficient network communication.
Compatibility with HPE ProCurve Networking Devices
The J9307A HPE ProCurve 24 Port 10/100/1000 PoE zl Expansion Module is designed to be compatible with HPE ProCurve zl switches. These switches have a modular design, which allows for the addition of expansion modules to increase the number of ports available on the switch. The J9307A module provides 24 additional 10/100/1000Mbps ports, each of which supports Power over Ethernet (PoE) capabilities. This allows the switch to power devices such as IP phones, wireless access points, and security cameras through the Ethernet cables, reducing the need for additional power sources. To use this expansion module, it must be installed in an available expansion slot on the compatible HPE ProCurve zl switch.
Resiliency and High Availability
The J9307A HPE ProCurve 24 Port 10/100/1000 PoE zl Expansion Module is designed to provide resiliency and high availability for network infrastructure. This module is designed to work in conjunction with HPE ProCurve zl switches, and it offers 24 ports of Gigabit Ethernet with Power over Ethernet (PoE) capabilities.
Resiliency refers to the ability of the module to continue functioning and providing network services even in the event of a failure or outage. This is achieved through a number of features, including redundant power supplies and built-in failover mechanisms.
High availability refers to the ability of the module to provide consistent, reliable network services at all times. This is achieved through a number of features, including built-in load balancing and traffic management capabilities, as well as the ability to scale the network infrastructure as needed.
Detail Description
- Manufacturer: HP
- MPN: J9307A
- Type : Networking
- Module-Type : Expansion Module 24 Ports
- SKU: J9307A
- Form Factor : Plug-In Module
Networking
- Connectivity Technology : Wired
- Cabling Type : Ethernet 10Base-T, Ethernet 100Base-Tx, Ethernet 1000Base-T
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate : 1 GBPS
- Features : Power Over Ethernet (Poe)
Expansion / Connectivity
- Interfaces :
- 24 X Network / Power – Ethernet 10Base-T/100Base-Tx/1000Base-T – RJ-45
- Compatible Slots : 1 X Expansion Slot
Dimension and Weight
- Height: 4.29inch
- Width: 13.9inch
- Depth: 12.91inch
- Weight: 4 Lbs
