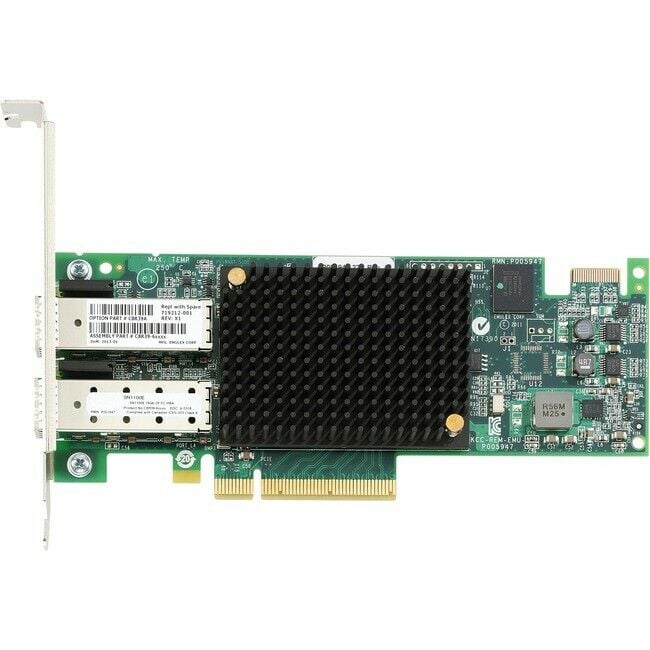

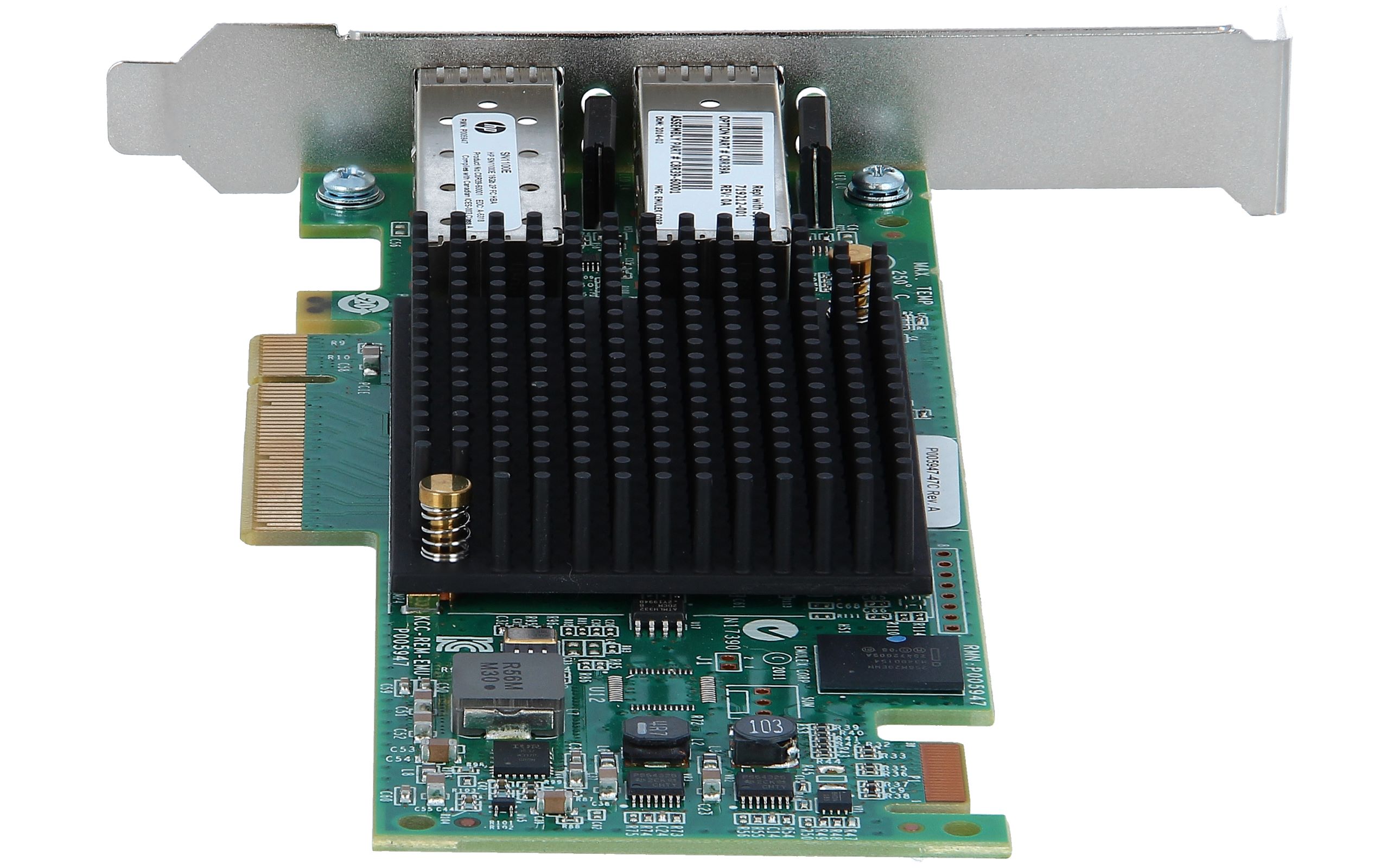

Product Overview for the HP C8R39A PCI-E Adapter
In the realm of computer hardware, connectivity solutions play a crucial role in ensuring seamless communication between various components. One such integral component is the HP C8R39A 16GB 2 Port PCI-E 3.0 Fibre Channel Host Bus Adapter (HBA) with Standard Bracket. In this comprehensive guide, we will delve into the intricacies of this specific HBA, breaking down its features, specifications, and applications in a simple and accessible language.
Understanding the Basics
Before delving into the specifics of the HP C8R39A, it’s essential to understand the foundational concepts. A Host Bus Adapter, or HBA, is a critical element in computer architecture, acting as an interface between a computer and a storage network. The Fibre Channel technology, in particular, is renowned for its high-speed data transfer capabilities, making it ideal for storage area networks (SANs) and other data-intensive applications.
Key Features
- 16GB Speed: The “16GB” in the product name refers to the data transfer speed of the HBA. This HBA operates at an impressive 16 gigabits per second, showcasing its high-performance capabilities. This speed is particularly advantageous in scenarios where rapid data transfer is imperative, such as in large-scale enterprise environments or data centers.
- 2 Port Configuration: The “2 Port” specification indicates that this HBA comes equipped with two ports for connectivity. Having multiple ports allows for increased flexibility in connecting to different devices or networks. It also provides redundancy, ensuring uninterrupted connectivity even if one port encounters issues.
- PCI-E 3.0 Interface: The “PCI-E 3.0” denotes the type of interface used by this HBA. PCI Express (PCI-E) is a high-speed interface standard commonly used for connecting various hardware components in computers. The “3.0” specifies the version, with each subsequent version offering improvements in data transfer rates and efficiency.
- Fibre Channel Technology: The inclusion of Fibre Channel technology is a pivotal aspect of this HBA. Fibre Channel is a high-performance data transfer protocol specifically designed for storage and networking applications. It ensures reliable and fast communication between the server and storage devices, making it a preferred choice in enterprise environments.
- Standard Bracket: The “Standard Bracket” is a physical attribute that influences the installation of the HBA. The bracket is the metal component that secures the HBA to the computer chassis. The term “Standard” implies compatibility with typical computer configurations, ensuring ease of installation in a variety of systems.
Technical Specifications
- Form Factor: The HP C8R39A features a standard form factor, adhering to industry standards for compatibility. Its form factor ensures that it can be seamlessly installed in a variety of server configurations, making it a versatile choice for different enterprise environments.
- Bus Type: Operating on the PCI Express 3.0 bus, this HBA is equipped to deliver high-speed data transfer rates between the server and connected storage devices. The PCI-E 3.0 bus type is a widely adopted standard in modern servers, ensuring broad compatibility.
- Compatibility: The HBA is designed to be compatible with a range of HP servers and storage solutions, providing users with flexibility in building and expanding their data storage infrastructure. Compatibility with industry-standard systems enhances the versatility of the HP C8R39A HBA.
- Operating System Support: This Fibre Channel HBA is designed to work seamlessly with various operating systems, including popular choices like Windows Server, Linux, and VMware. The broad operating system support adds to the adaptability of the HBA in diverse computing environments.
Applications
Understanding the applications of the HP C8R39A HBA is crucial in determining its suitability for specific use cases.
- Enterprise Storage Solutions: The high data transfer speed and dual-port configuration make this HBA well-suited for enterprise storage solutions. In environments where large volumes of data need to be accessed and transferred rapidly, such as databases or virtualized storage systems, the HP C8R39A can significantly enhance performance.
- Data Centers: Data centers, the backbone of modern digital infrastructure, demand reliable and high-speed connectivity. The 16GB speed and Fibre Channel technology make this HBA an excellent choice for data centers, where quick access to stored information is paramount.
- Virtualized Environments: In virtualized environments where multiple virtual machines share the same physical hardware, efficient data access is critical. The HP C8R39A’s dual-port configuration is beneficial in such scenarios, providing simultaneous access to multiple storage resources.
- Media and Entertainment Workflows: Applications requiring rapid data transfer, such as video editing or rendering in the media and entertainment industry, can benefit from the high-speed capabilities of this HBA. It ensures smooth and efficient handling of large media files.
General Information about this HP C8R39A
- Manufacturer: HP
- Part Number or SKU# C8R39A
- Product Type: Fiber Channel
- Product Name: Controller
Technical Specifications
- Ports: 16GB Fibre Channel x 2
- Form Factor: Plug-in Card – Low Profile
- Interface (Bus) Type: PCI Express 3.0 x8
- Connectivity Technology: Wired
- Cabling Type: Fiber optic
- Data Link Protocol: 4GB Fibre Channel (SW), 8Gb Fibre Channel (SW), 16Gb Fibre Channel (SW)
- Data Transfer Rate: 14.025 GBPS
- Features: Auto-negotiation
Miscellaneous
- Included Accessories: Low-Profile Bracket, Full-Height Bracket, 2 x 16GB SFP+
Expansion / Connectivity
- Expansion Slots: 2 (total) / 0 (free) x SFP+
- Interfaces: 2 x 16GB Fibre Channel (Short Wave) – LC multi-mode
Software / System Requirements
- OS Required: SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX, Microsoft Windows Server 2008 R2 (64-bits)
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 113 °F
- Operating Humidity Range: 15% – 80% (non-condensing)
Compatibility C8R39A HP 16GB
- HP Integrity MC990 Base, MC990 Expansion Server
- HP ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance
- HP ProLiant ML Series: ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance, ML350p Gen8 Special Server
- HP ProLiant SL Series: SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server
- HP ProLiant SL Series: XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G)
- HP StoreEasy 3850 Gateway Single Node
Outline, the HP C8R39A 16GB 2 Port PCI-E 3.0 Fibre Channel HBA with Standard Bracket stands out as a powerful and versatile solution for modern computing environments. Its 16GB data transfer speed, coupled with Fibre Channel technology and PCI-E 3.0 compatibility, positions it as a reliable workhorse for enterprises and data centers dealing with demanding workloads.
The inclusion of a Standard Bracket adds to its appeal, making it easy to integrate into various server configurations. Whether in an enterprise setting dealing with large datasets or a data center managing virtualized environments, the HP C8R39A proves to be a valuable asset in enhancing data transfer speed, reliability, and overall system performance. As technology continues to advance, having a high-performance HBA like the HP C8R39A becomes increasingly essential for organizations striving to stay at the forefront of efficient and reliable computing.
