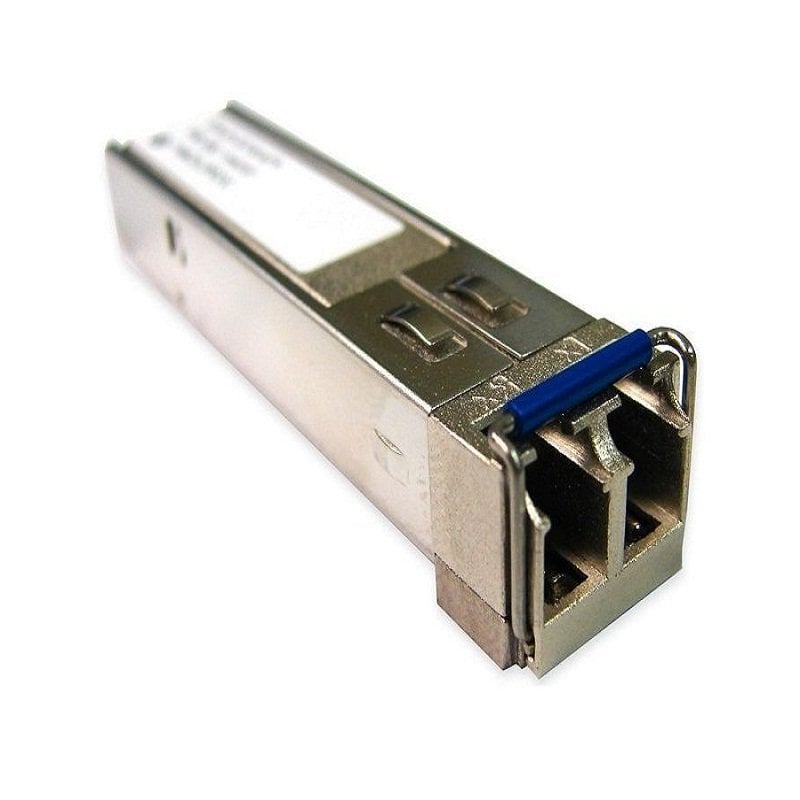

Product Overview of the HP AP823A Transceiver Module
In the fast-paced world of data transmission, having reliable and efficient networking components is crucial. One such component is the HP AP823A Small Form-Factor Pluggable Plus (SFP+) 10 Gigabits Per Second (GBPS) Short Wave Multi-Mode Fiber Transceiver Module. This comprehensive guide will delve into the key features, specifications, and benefits of this cutting-edge networking solution.
Key Features
The HP AP823A SFP+ transceiver module boasts a range of features that make it a standout choice for high-speed data transmission needs. Let’s explore some of its key attributes:
- Small Form-Factor Pluggable Plus (SFP+): The small form factor of this module allows for high port density in networking equipment, making it an ideal choice for environments where space is a premium.
- High-Speed Data Transfer: With a blazing-fast data transfer rate of 10 Gigabits per second (GBPS), the AP823A ensures swift and efficient data transmission, meeting the demands of modern networking applications.
- Short Wave Multi-Mode Fiber: The module is designed to work seamlessly with short-wave multi-mode fiber optics, providing flexibility in network design and deployment.
- 300m Transmission Range: This SFP+ module is equipped to handle transmissions over a distance of up to 300 meters, making it suitable for both short and medium-range connections.
- 850nm Wavelength: Operating at a wavelength of 850nm, the module leverages the advantages of multi-mode fiber optics, delivering reliable performance in various networking scenarios.
- Duplex LC Connector: The module features a Duplex LC connector, a widely used connector in networking applications, ensuring compatibility and ease of integration into existing setups.
Specifications
To gain a deeper understanding of the HP AP823A SFP+ module, let’s examine its detailed specifications:
- Data Rate: The module supports a data rate of 10 Gigabits per second, meeting the requirements of high-performance networks.
- Wavelength: Operating at a wavelength of 850nm, the module is optimized for multi-mode fiber optics, striking a balance between speed and reliability.
- Transmission Distance: With a transmission range of 300 meters, the AP823A is suitable for a variety of networking applications, including data centers and enterprise environments.
- Connector Type: The Duplex LC connector ensures a secure and efficient connection, facilitating easy integration into network setups.
Benefits of HP AP823A SFP+ Module
Now that we’ve explored the features and specifications, let’s discuss the tangible benefits that the HP AP823A brings to the table:
- Enhanced Network Performance: The 10GBPS data rate ensures that the module keeps up with the demands of bandwidth-intensive applications, contributing to an overall improvement in network performance.
- Flexible Network Design: The compatibility with short wave multi-mode fiber optics and the 300m transmission range allow network architects to design and implement diverse network topologies.
- Space-Efficient Design: The small form factor of the SFP+ module allows for high port density, making it a space-efficient solution for environments where rack space is limited.
- Plug-and-Play Integration: The hot-swappable nature of SFP+ modules, combined with the Duplex LC connector, facilitates easy and quick integration into existing network setups, minimizing downtime.
Quality of Service (QoS) Capabilities of the AP823A
- Priority Queuing: The AP823A supports priority queuing, allowing for the prioritization of certain types of network traffic based on their importance.
- Class of Service (CoS): The AP823A supports Class of Service (CoS) tagging, allowing for the classification of different types of network traffic into different categories.
- Traffic shaping: The AP823A supports traffic shaping, allowing for the control of bandwidth usage for specific types of network traffic.
- Quality of Service (QoS) policies: The AP823A supports the creation and implementation of Quality of Service (QoS) policies, allowing for the customization of QoS settings to meet specific network requirements.
- Bandwidth allocation: The AP823A supports the allocation of bandwidth to different types of network traffic, allowing for a more efficient use of network resources.
- Congestion management: The AP823A supports congestion management, allowing for the control of network traffic during periods of high traffic to prevent network congestion.
- Differentiated Services Code Point (DSCP) marking: The AP823A supports Differentiated Services Code Point (DSCP) marking, allowing for the identification and prioritization of different types of network traffic.
- Voice VLAN: The AP823A supports Voice VLAN, allowing for the prioritization of voice traffic for improved voice quality in VoIP environments.
- Multicast traffic management: The AP823A supports multicast traffic management, allowing for the control of multicast traffic to prevent network congestion.
- Adaptive Quality of Service (AQoS): The AP823A supports Adaptive Quality of Service (AQoS), allowing for dynamic adjustments to QoS settings based on real-time network conditions.
General Information about this HP AP823A
- Manufacturer: HP
- Part Number or SKU# AP823A
- Product Type: 10 Gigabits
- Product Name: Transceiver Module
Technical Information for SFP+ Transceiver
- Connectivity Technology: Wired
- Cabling Type: 10gbase-sr
- Data Link Protocol: 10 Gigabit Ethernet
- Enclosure Type: Plug-in Module
- Form Factor: SFP+
- Fiber Type: Multi-mode
- 10 Gbps data rate
- Short-wave (850 nm) multi-mode fiber (MMF) support
- SFP+ form factor
- Hot-pluggable
- LC connector
Performance
- Maximum Data Rate: 10 Gbps
- Wavelength: 850 nm
- Fiber Distance: Up to 70m on OM3 MMF and 100m on OM4 MMF
- Connector: LC
- Temperature Range: 0 to 70°C
- Power Consumption: <1.5W
- Compliance: MSA SFP+ Specification
Expansion / Connectivity
- Interfaces: 1 X Network – Ethernet 10gbase-sr
- Compatible Slots: 1 X Sfp+
In general, the HP AP823A Small Form-Factor Pluggable Plus (SFP+) 10 Gigabits Per Second (Gbps) Transceiver Module emerges as a crucial component in modern networking infrastructure. Its high-speed capabilities, compatibility with HP equipment, and suitability for short-range communication make it a valuable asset in diverse settings, from data centers to enterprise networks and high-performance computing environments. Understanding its technical specifications, applications, and maintenance features equips network professionals with the knowledge needed to leverage the full potential of this advanced networking component.
