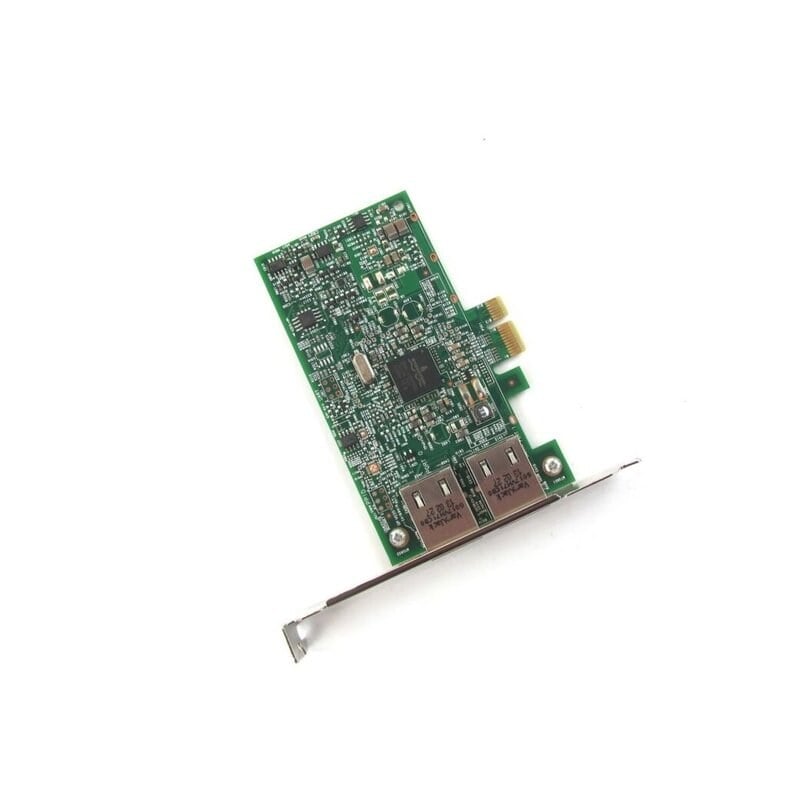

The HPE Ethernet 1GB 2-port 332t Network 100Mb LAN, GigE Adapter (part number 615732-B21) is a network adapter designed for use with HPE servers. It is a PCI Express (PCIe) card that can be installed in a server’s expansion slot.
The adapter has two Ethernet ports, each capable of providing a data transfer rate of 1 Gbps (gigabit per second). This allows for high-speed connectivity to network devices such as switches and routers. The ports are also compatible with both 100 Mbps (megabit per second) and 1000 Mbps (gigabit per second) networks, meaning they can connect to both older and newer network equipment.
The adapter also supports the Ethernet standard, which is a widely-used networking protocol that enables communication between devices on a LAN (local area network). Additionally, the adapter supports the GigE (Gigabit Ethernet) standard, which is a faster version of Ethernet that can transfer data at a rate of up to 1 Gbps.
The adapter is compatible with a wide range of HPE servers, and is designed to work with both Windows and Linux operating systems. It also features advanced features such as support for jumbo frames (larger data packets) and flow control, which can help to optimize network performance.
Data Protection and Security
615732-B21 HPE Ethernet 1GB 2-port 332t Network 100Mb LAN, GigE Adapter is a network adapter designed for use in HPE servers. It provides two Ethernet ports with a maximum data transfer rate of 1 Gbps. The adapter supports both 100Mbps LAN and Gigabit Ethernet (GigE) protocols, allowing for versatile connectivity options.
One of the key features of this adapter is its data protection and security capabilities. It includes advanced security features such as Advanced Encryption Standard (AES) and Secure Hash Algorithm (SHA) for data encryption and integrity checking. It also supports Virtual Local Area Network (VLAN) tagging, which allows for segmentation of network traffic and improved security.
In addition, the adapter includes features such as TCP/IP offload engine (TOE) and Receive Side Scaling (RSS) for improved performance and reduced load on the server’s CPU. This helps to ensure that data is transmitted and received efficiently and securely.
Power and Innovation
615732-B21 HPE Ethernet 1GB 2-port 332t Network 100Mb LAN, GigE Adapter is a high-performance network adapter designed for use in Hewlett Packard Enterprise (HPE) servers and workstations. This adapter provides two Ethernet ports, each capable of delivering up to 1 Gbps of data throughput. The adapter also supports 100 Mbps LAN and Gigabit Ethernet (GigE) speeds, making it ideal for use in high-speed network environments.
Power and innovation are key features of this adapter. It uses advanced technologies to optimize power consumption and performance, making it a highly efficient and cost-effective solution for data centers and other high-performance computing environments. The adapter also provides a wide range of advanced features and capabilities, such as support for virtualization, network traffic management, and security, which help to improve network performance and security.
General Information
- Manufacturer: HPE
- MPN: 615732-B21
- Type: Network adapter
- Spare Part: 616012-001
- SKU:615732-B21
- Form Factor: Plug-in card-low profile
- Interface (Bus) Type: PCI Express 2.0 x1
- PCI Specification Revision: PCIe 2.0
Dimensions
- Depth: 4.4 inch
- Height: 2.4 inch
Networking
- Ports: Gigabit Ethernet x 2
- Connectivity Technology: Wired
- Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
- Data Transfer Rate: 1 Gbps
- Status Indicators: Link activity
- Features: Jumbo Frames support, PXE support, Large Send Offload (LSO)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor/Memory
- Processor: 1 x BCM5720 – Broadcom
Expansion / Connectivity
- Interfaces: 2 x 1000Base-T – RJ-45
- Compatible Slots: 1 x PCI Express 2.0 x1
Miscellaneous
- Included Accessories: Low-Profile Bracket, Full-Height Bracket
- Compliant Standards: VCCI Class B ITE, EN 61000-3-2, EN55022, EN 61000-3-3, FCC Part 15 B, WEEE, RoHS
System Requirements
- OS Required: SunSoft Solaris 10, Microsoft Windows HPC Server 2008 SP2, Microsoft Windows Server 2008 R2 SP1, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 131 °F
- Humidity Range Operating: 10 – 90% (non-condensing)
Compatibility Information
- HP ProLiant DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance,
- DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray,
- SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Right Half Width Tray, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
