Description
Enterprise Hard Drives

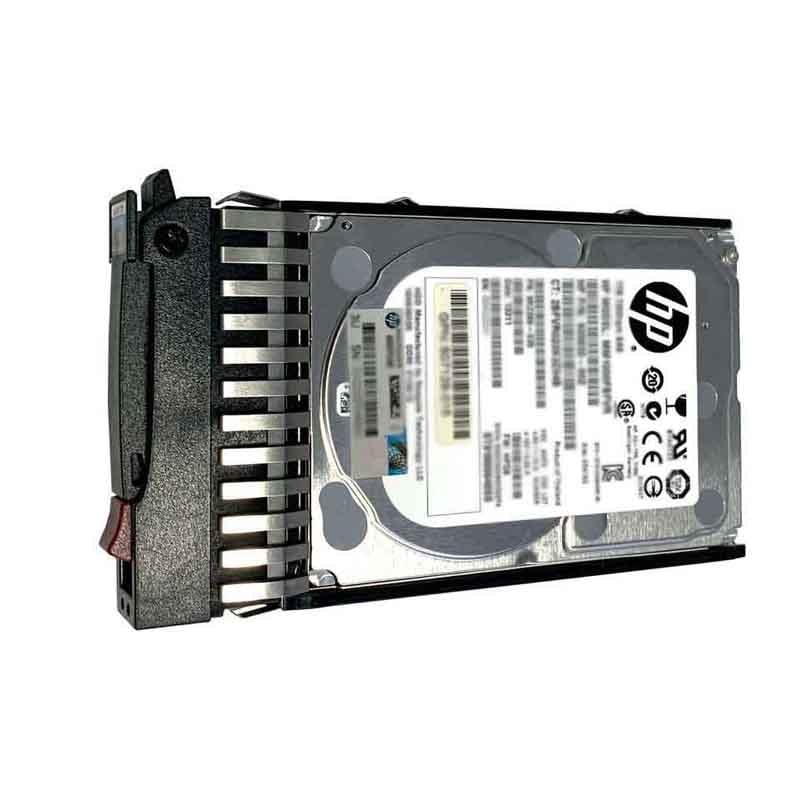

The HP 516810-003 is a hard drive that is designed for use in enterprise-level storage systems.Enterprise hard drives are high-performance drives that are designed for use in enterprise-level storage systems. They are typically more expensive and more reliable than consumer-grade hard drives, and are designed to handle the demanding workloads and high levels of data throughput that are common in enterprise-level storage systems.
One key feature of enterprise hard drives is their high spindle speeds, which allow them to access data more quickly. Enterprise hard drives may have spindle speeds of 10,000 RPM or higher, while most consumer-grade hard drives have spindle speeds of 7200 RPM or lower.
Another key feature of enterprise hard drives is their use of SAS (Serial Attached SCSI) or Fibre Channel interfaces, which have higher data transfer rates than the SATA interface used in many consumer-grade hard drives. This allows enterprise hard drives to transfer data more quickly and efficiently, which can improve the overall performance of the storage system.
Enterprise hard drives are typically used in applications such as databases, data analysis, and large-scale storage systems, where high performance and reliability are critical. They are often used in servers and other enterprise-level storage systems, and are typically more expensive than consumer-grade hard drives.
High-performance
The HP 516810-003 is a high-performance hard drive designed for use in enterprise-level storage systems. It has a spindle speed of 15,000 RPM, which is faster than most consumer-grade hard drives, and uses the SAS-6Gbps interface, which has a higher data transfer rate than the SATA interface used in many consumer-grade hard drives. The combination of these factors makes the product well-suited for applications that require high levels of data throughput, such as databases, data analysis, and large-scale storage systems.
In terms of actual performance, the product is capable of sequential read and write speeds of up to 210MB/s and 180MB/s, respectively. These speeds may vary depending on the specific system it is used in and the workload being placed on the drive.
It is important to note that the performance of any hard drive can be affected by a number of factors, such as the condition of the drive, the age of the drive, the workload being placed on the drive, and the system it is used in. If you are concerned about the performance of the product in a specific application, it is best to test the drive in that application to get a more accurate sense of its performance.
Serial Attached SCSI (SAS)
Serial Attached SCSI (SAS) is a computer bus technology primarily used to connect computer storage devices such as hard drives and solid-state drives to a computer’s motherboard. SAS is a point-to-point protocol, which means that each device is connected directly to the host bus adapter (HBA), rather than being connected through a shared cable or other intermediary device.
Product Information:
Manufacturer Name: HP
MPN: 516810-003
Type: Hard Drive – Hot-Swap
HDD Type: SAS 6GBPS
Option Part Number: 516828-B21
Spare Part Number: 517354-001
Model Number: EF0600FATFF
Technical Information
Capacity: 600 GB
Form Factor: 3.5 inch LFF
Interface: SAS 6GBPS
Bytes per Sector: 512E
Drive Technology (Fill): Air
Plug Type: Hot Plug
Carrier Type: Standard Carrier
Workload Type: Enterprise
Features: Dual Port
Bundled with: HP Standard Carrier
Performance
Drive Transfer Rate: 6 GB/Sec (External)
Drive Rotational Speed: 15000 RPM
Expansion & Connectivity
Interfaces: 1 x Serial Attached SCSI 2
Compatible Bays: 1 x Hot-Swap – 3.5 Inch LFF
Dimension and Weight
Width: 4 Inch
Depth: 5.8 Inch
Height: 1 Inch
Weight: 1.52 LBS
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatibility
HP ProLiant DL Series: DL120 Gen6 (3.5 inch), DL120 Gen6 Performance (3.5 inch), DL120 Gen7 (3.5 inch), DL120 Gen7 Base (3.5 inch), DL120 Gen7 Entry (3.5 inch), DL120 Gen7 Performance (3.5 inch), DL160 Gen5 (3.5 inch), DL160 Gen5 Special Server (3.5 inch), DL160 Gen5p (3.5 inch), DL160 Gen5p Special Server (3.5 inch), DL160 Gen6 (3.5 inch), DL160 Gen6 Special Server (3.5 inch), DL160se Gen6 (3.5 inch), DL165 Gen5 (3.5 inch), DL165 Gen5 Special Server (3.5 inch), DL165 Gen5p (3.5 inch), DL165 Gen5p Base (3.5 inch), DL165 Gen5p Performance (3.5 inch), DL165 Gen6 (3.5 inch), DL165 Gen7 (3.5 inch), DL165 Gen7 Base (3.5 inch), DL165 Gen7 Entry (3.5 inch), DL165 Gen7 Special Server (3.5 inch), DL180 Gen5 (3.5 inch), DL180 Gen5 Special Server (3.5 inch), DL180 Gen6 (3.5 inch), DL180 Gen6 Special Server (3.5 inch), DL185 Gen5 (3.5 inch), DL185 Gen5 Special Server (3.5 inch), DL2x170h Gen6 (3.5 inch), DL320 Gen6 (3.5 inch), DL320 Gen6 Entry (3.5 inch), DL320 Gen6 High Efficiency (3.5 inch), DL320 Gen6 Performance (3.5 inch), DL370 Gen6 (3.5 inch), DL370 Gen6 Special Server (3.5 inch), DL380 Gen6 (3.5 inch), DL380 Gen7 (3.5 inch), DL385 Gen5p (3.5 inch), DL385 Gen6 (3.5 inch), DL385 Gen6 Performance (3.5 inch), DL385 Gen7 (3.5 inch), DL170h Gen6 (3.5 inch)
HP ProLiant ML Series: ML110 Gen7 (3.5 inch), ML150 Gen6 (3.5 inch), ML150 Gen6 Base (3.5 inch), ML150 Gen6 Performance (3.5 inch), ML310 Gen5p (3.5 inch), ML330 Gen6 (3.5 inch), ML330 Gen6 Base (3.5 inch), ML350 Gen5 (3.5 inch), ML350 Gen5 Entry (3.5 inch), ML350 Gen6 (3.5 inch), ML350 Gen6 Entry (3.5 inch), ML350 Gen6 Special Server (3.5 inch), ML370 Gen6 (3.5 inch)
