Description
Managing and Monitoring the Module

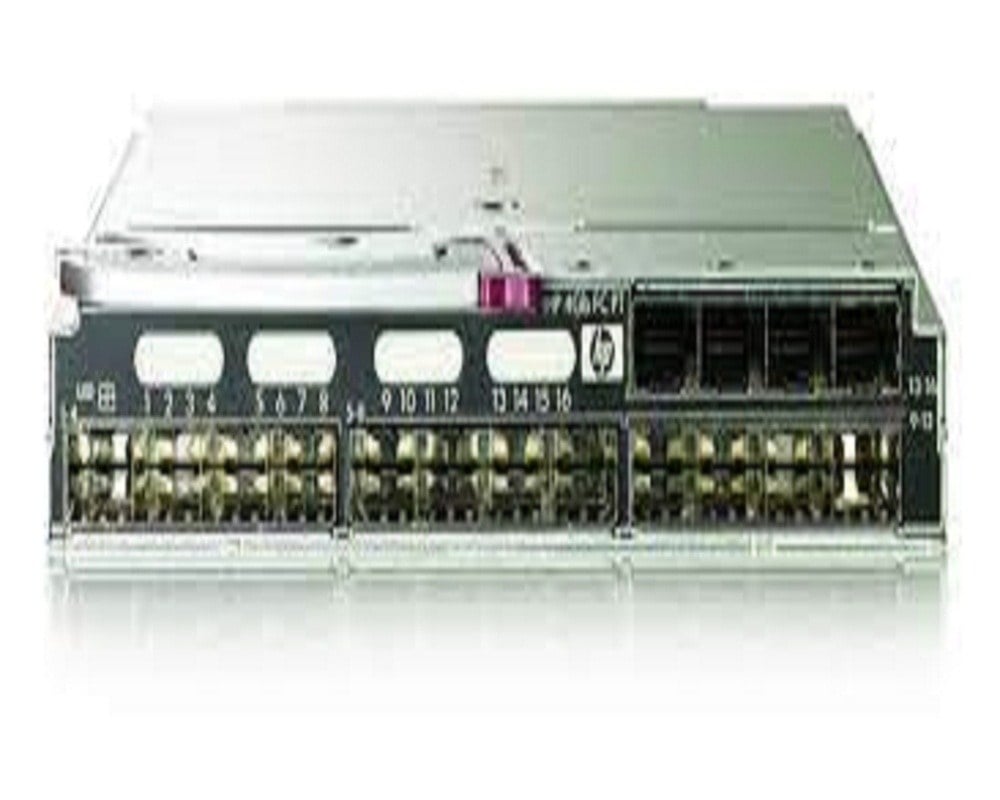

The HP 4GB Fibre Channel Pass-Thru Module (part number 403626-B21) is an expansion module for use with HP ProLiant servers. It provides 16 1000BASE-SX Fibre Channel ports for connecting to Fibre Channel storage devices. The module can be managed and monitored using HP Systems Insight Manager, which allows for the monitoring of server health and performance, as well as the configuration and management of the Fibre Channel ports. Additionally, the Fibre Channel ports on the module can be managed through the use of Fibre Channel management software, such as HP StorageWorks FC Manager or other third-party software. It is important to check the compatibility of the software with the module and the specific ProLiant server that it is being used with.
Troubleshooting and Maintenance
Troubleshooting and maintenance of the 403626-B21 HP 4GB Fibre Channel Pass-Thru Module -16 X 1000base-sx – Expansion Module may include the following steps:
- Check the connections: Ensure that all cables are securely connected to the module and that the connections are tight.
- Check the status lights: The module has status lights that indicate the status of the module and its connections. If the lights are not lit or are flashing, this may indicate a problem with the module.
- Check the firmware: Make sure that the module’s firmware is up to date. Outdated firmware can cause issues with the module’s performance.
- Check the compatibility: Verify that the module is compatible with the system it is installed in.
- Check for errors: Check the system logs for any errors related to the module. If errors are found, they should be addressed promptly.
- Cleaning: Clean the module and its connections regularly to prevent dust buildup.
- Update the drivers: Make sure that the drivers for the module are up to date.
- Replace the module: If the module is not functioning properly, it may need to be replaced.
Performance and Scalability
The HP 4GB Fibre Channel Pass-Thru Module (403626-B21) is a high-performance and scalable expansion module designed for use in HP servers and storage systems. It provides 16 ports of 1000base-sx Fibre Channel connectivity, allowing for high-speed data transfer between devices.
In terms of performance, the module offers 4GB/s of bandwidth per port, which is suitable for a wide range of applications such as storage area networks (SANs), data backup and recovery, and virtualization. The module also supports advanced features such as Quality of Service (QoS) and Fibre Channel zoning, which help to optimize network traffic and ensure reliable data transfer.
In terms of scalability, the module can be easily added to existing systems to increase the number of Fibre Channel ports and support additional devices. It also supports hot-plugging, which means it can be replaced or upgraded without disrupting the operation of the system.
Specifications
- Manufacturer: HP
- MPN: 403626-B21
- Type: Networking
- Module Type: Expansion Module 16 Port
- SKU: 403626-B21
Networking
- Connectivity Technology : Wired
- Cabling Type : Fiber Optic
- Data Link Protocol : 4gb Fibre Channel (short Wave)
- Data Transfer Rate : 4.24 Gbps
Expansion / Connectivity
- Expansion Slots Total (free) : 16 ( 0 ) X Sfp (mini-gbic)
- Interfaces : 16 X Network – 4gb Fibre Channel (short-wave) 16 X Network – 4gb Fibre Channel – Backplane
- Compatible Slots : 1 X Expansion Slot
