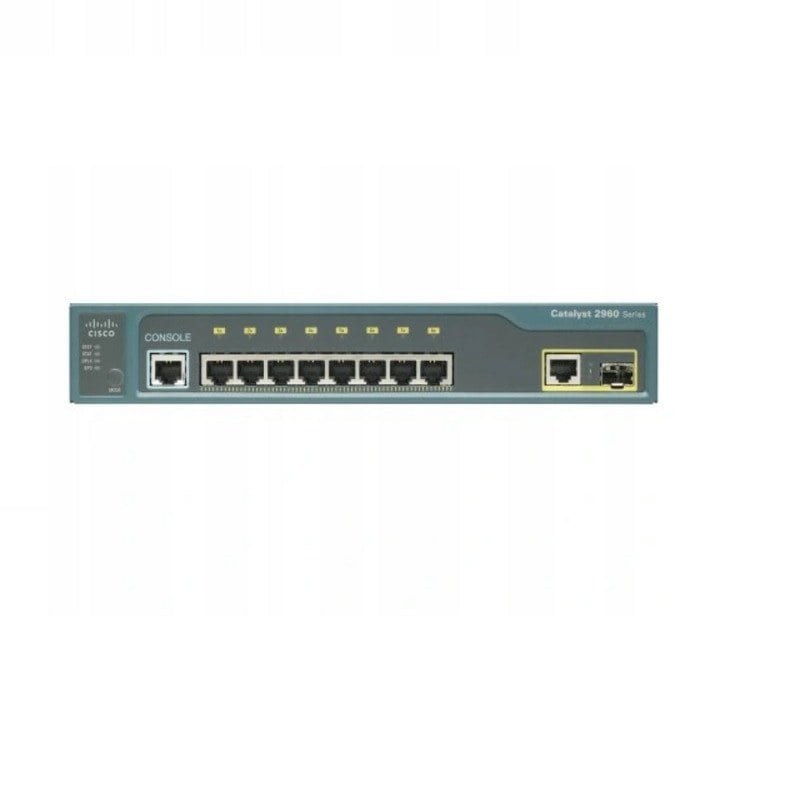

Product Overview of the Cisco Layer 2 8 Ports Switch
In the realm of networking solutions, the Cisco WS-C2960-8TC-L stands out as a powerful 8-port Layer 2 managed switch. This device plays a crucial role in efficiently managing network traffic, ensuring seamless communication, and enhancing overall connectivity. In this detailed exploration, we will delve into the key features and specifications of the Cisco WS-C2960-8TC-L, shedding light on its managed switch capabilities, supported media types, Ethernet technology, network technology, and port details.
Managed Switch CapabilitiesDefinition of a Managed Switch
Before we delve into the specifics of the Cisco WS-C2960-8TC-L, let’s first understand the concept of a managed 8-port switch. A managed switch, unlike its unmanaged counterpart, provides administrators with the ability to configure, monitor, and manage the device remotely. This level of control enables fine-tuning of network settings, optimization of performance, and enhanced security measures.
Significance of Managed Switches in Networking
Managed switches are integral components in network infrastructure due to their versatility and advanced functionality. These devices facilitate the creation of VLANs (Virtual Local Area Networks), allow for Quality of Service (QoS) customization, and offer features like port mirroring for effective network monitoring. The Cisco WS-C2960-8TC-L, as a managed switch, embodies these capabilities and more.
Media Type Supported: Twisted PairUnderstanding Media Types in Networking
The term “media type” in networking refers to the physical medium through which data is transmitted. In the case of the Cisco WS-C2960-8TC-L, the supported media type is a twisted pair.
Twisted Pair: A Reliable Transmission Medium
Twisted pair cables are a common and reliable form of transmission medium in networking. Consisting of pairs of insulated copper wires twisted together, this type of cable is known for its resistance to electromagnetic interference (EMI) and its cost-effectiveness. The use of twisted pairs in the Cisco WS-C2960-8TC-L ensures robust data transmission across the network.
Ethernet Technology: Fast EthernetFast Ethernet: A Speedy Data Transfer Solution
The Cisco WS-C2960-8TC-L is equipped with Fast Ethernet technology. Fast Ethernet operates at speeds of 100 megabits per second (Mbps), providing a significant improvement over standard Ethernet (10 Mbps). This enhanced speed is especially beneficial for networks requiring swift data transfer, such as in business environments and educational institutions.
Implications of Fast Ethernet in the Cisco WS-C2960-8TC-L
The incorporation of Fast Ethernet technology in this managed switch translates to reduced latency, faster file transfers, and improved overall network performance. Whether handling large data files or supporting bandwidth-intensive applications, the Cisco WS-C2960-8TC-L’s Fast Ethernet capabilities contribute to a seamless networking experience.
Network Technology: 10/100Base-TXDefinition of 10/100Base-TX
The network technology specified for the Cisco WS-C2960-8TC-L is 10/100Base-TX. This designation indicates compatibility with both 10 Mbps and 100 Mbps data transfer speeds.
Versatility of 10/100Base-TX in Networking
The 10/100Base-TX standard provides flexibility in networking environments, allowing the Cisco WS-C2960-8TC-L to seamlessly integrate with both older systems operating at 10 Mbps and modern, high-speed networks running at 100 Mbps. This adaptability ensures that the managed switch can be employed in a variety of settings without sacrificing performance.
Layer Supported: Layer 2Understanding the Concept of Networking Layers
In networking, the concept of layers is crucial for organizing and standardizing communication protocols. The OSI (Open Systems Interconnection) model defines seven layers, each serving a specific function. The Cisco WS-C2960-8TC-L operates at Layer 2.
Layer 2: The Data Link Layer
Layer 2, also known as the Data Link Layer, is responsible for the reliable transmission of data between adjacent network nodes. The Cisco WS-C2960-8TC-L’s Layer 2 support ensures efficient and error-free communication within the local network, making it a suitable choice for various networking scenarios.
Total Number of Ports: 8Importance of Ports in Networking
Ports are essential interfaces on networking devices that facilitate the connection of various devices within a network. The Cisco WS-C2960-8TC-L boasts a total of 8 ports, each serving as a gateway for data transmission.
Scalability and Connectivity with 8 Ports
The inclusion of 8 ports in the Cisco WS-C2960-8TC-L enhances its scalability and connectivity options. This managed switch can accommodate multiple devices simultaneously, making it suitable for small to medium-sized networks where numerous connections are required.
Number of RJ-45 Ports: 8
Role of RJ-45 Ports in Networking
RJ-45 ports, commonly found on networking devices, serve as the physical connectors for Ethernet cables. These ports enable the transfer of data between the connected devices in a network.
Significance of 8 RJ-45 Ports in the Cisco WS-C2960-8TC-L
The Cisco WS-C2960-8TC-L is equipped with 8 RJ-45 ports, providing ample connectivity for a variety of devices. This abundance of ports ensures that the managed switch can accommodate a diverse range of network components, promoting seamless communication and data transfer.
Port Details
8 x Fast Ethernet Network Ports
The Cisco WS-C2960-8TC-L features 8 Fast Ethernet network ports, each operating at speeds of 100 Mbps. These ports serve as the primary channels for connecting devices within the local network, facilitating high-speed data transfer.
1 x Gigabit Ethernet Expansion Slot
In addition to the 8 Fast Ethernet ports, the Cisco WS-C2960-8TC-L includes a Gigabit Ethernet expansion slot. This slot offers the flexibility to expand the switch’s capabilities by adding additional high-speed connections, supporting data rates of up to 1 gigabit per second (Gbps).
1 x Gigabit Ethernet Uplink
The presence of a Gigabit Ethernet uplink further enhances the Cisco WS-C2960-8TC-L’s connectivity options. The uplink serves as a high-speed connection point for linking the switch to other network devices or higher-level network infrastructure, ensuring efficient data flow between different segments of the network.
General Information about the Cisco WS-C2960-8TC-L
- Manufacturer: Cisco
- Model Number or SKU# WS-C2960-8TC-L
- Product Line: Catalyst
- Product Series: 2960
- Product Type: Ethernet Switch
Key Features of Ethernet Switch
- Total Number of Ports: 8
- Number of RJ-45 Ports: 8
- Port Details
- 8 x Fast Ethernet Network
- 1 x Gigabit Ethernet Expansion Slot
- 1 x Gigabit Ethernet Uplink
Performance
- Managed Switch
- Media Type Supported: Twisted Pair
- Ethernet Technology: Fast Ethernet
- Network Technology: 10/100Base-TX
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: No
- Input Voltage: 220 V AC, 110 V AC
Finally, the Cisco WS-C2960-8TC-L 8 Ports Layer 2 Managed Switch proves to be a versatile and reliable solution for diverse networking needs. From its compact design to its rich feature set, this switch caters to the demands of small to medium-sized businesses, educational institutions, and office environments. Its user-friendly interface, coupled with advanced security and scalability features, positions it as a valuable asset in the ever-evolving landscape of networking solutions. As technology continues to advance, the Cisco WS-C2960-8TC-L stands as a testament to Cisco’s commitment to delivering cutting-edge solutions that simplify the complexities of network management.
