Description
Power Consumption and Energy Efficiency

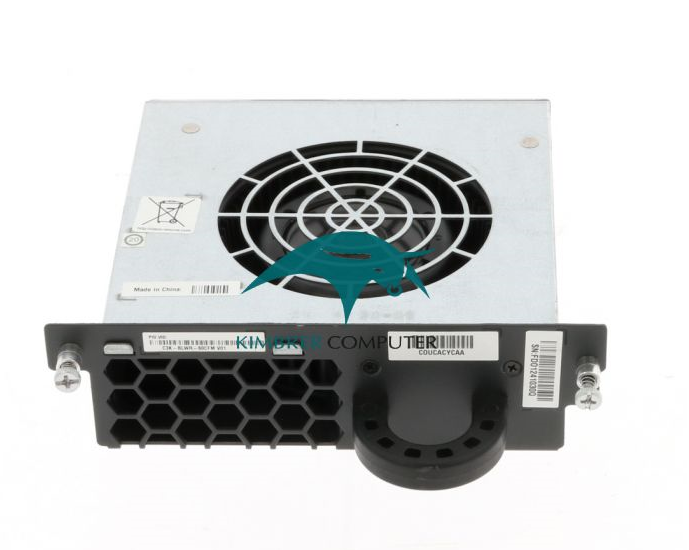

The Cisco Catalyst 3560-E/3750-E Fan Module (C3K-BLWR-60CFM) is designed to provide efficient cooling for Cisco Catalyst 3560-E and 3750-E series switches. The module is rated for a maximum power consumption of 17 watts and provides a maximum air flow of 60 cubic feet per minute (CFM).
In terms of energy efficiency, the C3K-BLWR-60CFM is designed to be as efficient as possible. It uses a high-efficiency fan design and incorporates intelligent speed control algorithms to dynamically adjust fan speed based on temperature and airflow requirements. This helps to minimize power consumption while ensuring that the switch remains cool and operates at optimal performance.
It’s worth noting that the actual power consumption of the fan module will depend on several factors, including the temperature and airflow requirements of the environment in which it is operating, the number of fans installed, and the operating mode of the switch. However, by providing efficient cooling and reducing the need for additional cooling systems, the C3K-BLWR-60CFM can help to lower overall energy costs for a network.
Installation and Setup
The C3K-BLWR-60CFM is a fan module used to regulate the temperature of a Cisco Catalyst 3560-E/3750-E switch. The following steps explain the installation and setup of this fan module:
- Unpack the fan module and make sure it is the correct model for the switch.
- Remove the fan tray from the switch by releasing the locking tabs on the side of the switch and sliding the fan tray out.
- Carefully connect the fan module to the fan tray by aligning the pins on the fan module with the connectors on the fan tray. Push the fan module into place until it locks securely.
- Replace the fan tray into the switch by sliding it into place and locking the tabs.
- Connect the fan module to the power supply of the switch. The fan module should start running automatically once it is connected to power.
- Check the fan speed and noise level to make sure the fan module is functioning properly. The fan speed can be monitored using the switch’s management interface.
- If necessary, adjust the fan speed using the switch’s management interface. The fan speed can be increased or decreased to balance cooling efficiency and noise level.
In conclusion, the C3K-BLWR-60CFM fan module is easy to install and can be easily monitored and controlled through the switch’s management interface. This helps to ensure a stable operating temperature for the switch and improve its reliability.
Benefits of Using
- Improved Airflow: The C3K-BLWR-60CFM Cisco Catalyst 3560-E/3750-E Fan Module provides efficient airflow, which helps in keeping the temperature of the switch low and prevents it from overheating.
- Enhanced Reliability: The fan module is designed with high-quality components that ensure reliable performance, making it ideal for mission-critical applications.
- Easy Installation: The fan module is easy to install and can be replaced without much hassle, which reduces downtime and improves maintenance efficiency.
- Compatible with a Wide Range of Switches: The C3K-BLWR-60CFM is compatible with both 3560-E and 3750-E switches, making it a versatile option for network administrators.
- Low Noise Operation: The fan module operates at a low noise level, making it ideal for use in environments where noise levels need to be kept low, such as data centers.
- Energy Efficient: The fan module is designed to consume less power and helps in reducing energy consumption, making it an eco-friendly and cost-effective solution.
- Improved System Performance: By maintaining an optimal temperature, the fan module ensures improved system performance and reliability, making it ideal for use in demanding network environments.
General Information:
- Manufacturer Cisco Systems, Inc
- Manufacturer Part Number C3K-BLWR-60CFM
- Brand Name Cisco
- Product Model C3K-BLWR-60CFM
- Product Name C3K-BLWR-60CFM Fan Module
- Product Type Fan Tray
Miscellaneous:Compatibility:-
- Catalyst 3750-E Series Switches
- Catalyst 3560-E Series Switches
