Description

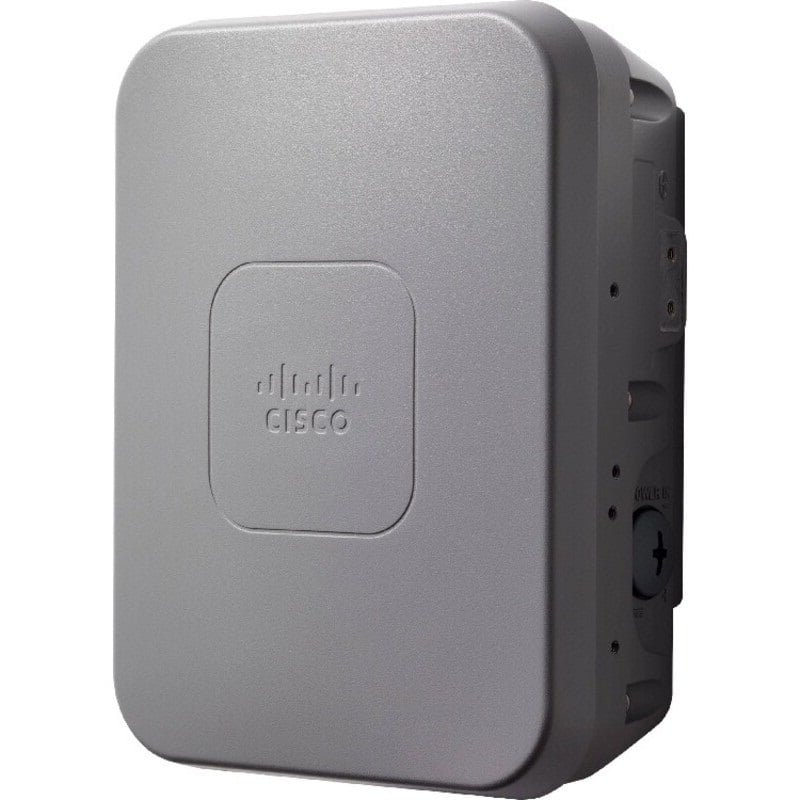

Product Overview of the Cisco AIR-AP1562I-B-K9 Wireless Access Point
The Cisco Aironet 1562I is a wireless access point that operates in the 5 GHz frequency band. It is compliant with the IEEE 802.11ac standard and has a maximum data rate of 1.30 Gbit/s. It is designed to be used in enterprise environments to provide
wireless connectivity for devices such as laptops, tablets, and smartphones. The access point can be managed through a web-based interface or through a command-line interface using a console connection. It also has the ability to be managed remotely through a centralized controller.
IEEE 802.11ac Standard
The Aironet 1562I is built upon the IEEE 802.11ac standard, which is the fifth generation of Wi-Fi technology. This standard has significantly improved wireless performance, offering higher data transfer rates, increased capacity, and better overall reliability compared to its predecessors.
Gigabit-Speed Data Transfer
One of the most noteworthy features of the IEEE 802.11ac standard is its capability to deliver data transfer rates of up to 1.3 Gigabits per second (Gbps). This is a remarkable advancement, as it provides the bandwidth needed for demanding applications, such as high-definition video streaming, online gaming, and large file downloads, without lag or buffering issues. The Aironet 1562I excels in harnessing this high-speed potential, ensuring a seamless and uninterrupted wireless experience.
Dual-Band Connectivity-5GHz and 2.4GHz
The Aironet 1562I supports dual-band connectivity, operating on both the 5GHz and 2.4GHz frequency bands. This dual-band capability is advantageous for optimizing network performance and accommodating a variety of client devices.
5GHz Frequency Band
The 5GHz band offers several advantages over the 2.4GHz band, including reduced interference, higher data rates, and more available channels. This band is ideal for applications that require a robust and interference-free connection. The Aironet 1562I utilizes the 5GHz band effectively, making it a suitable choice for high-density environments where multiple devices are connected simultaneously.
2.4GHz Frequency Band
The 2.4GHz band is known for its ability to cover a broader area and penetrate obstacles such as walls and floors more effectively. While it may have a lower data rate compared to the 5GHz band, it remains essential for ensuring wireless coverage in larger areas. The Aironet 1562I’s dual-band support allows it to provide comprehensive coverage, making it versatile and adaptable to various deployment scenarios.
MIMO Technology-Enhancing Wireless Performance
Multiple-Input, Multiple-Output (MIMO) technology is a key component of the Aironet 1562I’s design. MIMO technology improves wireless communication by using multiple antennas for both transmission and reception. This technique significantly increases data throughput and reliability. Here’s how it works:
Spatial Streams
MIMO technology divides data into multiple streams, or spatial streams, which are transmitted and received separately. This parallel transmission and reception of data increase the overall data rate and network efficiency.
Antenna Diversity
MIMO devices like the Aironet 1562I feature multiple antennas, providing antenna diversity. This means that the device can choose the best combination of antennas for each data transmission, reducing the impact of interference and increasing the chances of successful data delivery.
Beamforming Technology-Focusing the Signal
Beamforming is another remarkable technology incorporated into the Aironet 1562I. It enhances the performance of the wireless network by concentrating the signal toward the intended recipient. Instead of broadcasting the signal in all directions, the device determines the precise direction of the connected device and sends a focused beam in that direction.
Benefits of Beamforming
- Improved Signal Quality: Beamforming results in a stronger, more reliable signal, reducing the chances of interference and packet loss.
- Extended Range: By directing the signal where it’s needed, beamforming can extend the coverage range of the wireless network.
- Better Throughput: Focused beams ensure that the data reaches its destination more quickly, increasing network throughput.
In summary, MIMO and Beamforming technologies work together in the Aironet 1562I to optimize wireless communication, ensuring a stable and high-speed connection for all connected devices.
Power Over Ethernet (PoE) Support
The Aironet 1562I supports Power over Ethernet (PoE), which is a valuable feature for simplifying installation and reducing cable clutter. PoE allows the device to receive both data and power over a single Ethernet cable. This eliminates the need for a separate power source, making it easier to deploy the Wireless Access Point in various locations, especially in outdoor or hard-to-reach areas.
PoE Standards
The PoE support in the Aironet 1562I is compliant with industry standards, such as IEEE 802.3af and 802.3at. This ensures compatibility with a wide range of PoE switches and injectors, making it convenient for network administrators to set up and manage their wireless networks.
Flexible Deployment
With PoE support, the Aironet 1562I can be installed in areas where traditional power sources are not readily available, simplifying deployment in outdoor settings, on rooftops, or in remote locations. This flexibility is a significant advantage, enabling network expansion and coverage in places that were previously challenging to connect.
High-Performance Connectivity
The Aironet 1562I, based on the IEEE 802.11ac standard, offers exceptional performance with its 1.3 Gbps data transfer rate. This high-speed connectivity is crucial for businesses and organizations that rely on seamless access to data, applications, and the Internet. Users can enjoy smooth online experiences, and enterprises can support bandwidth-intensive applications with confidence.
Versatile Deployment
The Aironet 1562I’s support for both the 5GHz and 2.4GHz frequency bands and its compatibility with PoE simplify deployment in various environments. Whether you need to create a wireless network in a busy office building, a bustling university campus, or a remote outdoor location, the Aironet 1562I can adapt and provide reliable connectivity. Its ability to deliver high-speed Wi-Fi in both indoor and outdoor settings makes it a versatile solution for a wide range of use cases.
Enhanced Coverage and Capacity
In crowded public spaces, such as airports, shopping malls, and stadiums, the demand for reliable and high-speed wireless connectivity is immense. The Aironet 1562I excels in these environments by utilizing MIMO and Beamforming technologies to extend the coverage range and improve signal quality. This ensures that a large number of users can connect simultaneously without experiencing slowdowns or disconnections.
Simplified Management
Network administrators will appreciate the ease of managing the Aironet 1562I, thanks to its compatibility with PoE standards and Cisco’s network management tools. The device can be seamlessly integrated into existing network infrastructure, and its centralized management capabilities make it simple to monitor and configure multiple access points from a single interface. This reduces the complexity of network administration and allows for more efficient troubleshooting and maintenance.
Future-Proofing
The Aironet 1562I is designed to meet the demands of today’s wireless networking needs, but it’s also built with an eye toward the future. As technology evolves and new standards emerge, having a wireless access point that supports the latest technologies is essential. The Aironet 1562I is equipped to handle the challenges of tomorrow’s network requirements, ensuring a longer lifespan for your network infrastructure investment.
High-Performance
The Cisco Aironet 1562I is a wireless access point that operates on the 802.11ac standard. It is capable of data transfer speeds of up to 1.3 Gbit/s. The “I” in the model name indicates that it supports both 2.4 GHz and 5 GHz frequency bands. The “B” in the model name indicates that it supports Bluetooth Low Energy (BLE) technology, which allows it to function as a beacon and support location services. The “K9” in the model name indicates that the device comes with a specific type of software, known as Cisco IOS, that is used to manage and secure the device.
Reliability of Wireless AP
The Cisco Aironet 1562I is a reliable wireless access point. It is designed to withstand harsh environments and has been tested to ensure that it is reliable in a variety of deployment scenarios. However, like any piece of hardware, it is possible for the Aironet 1562I to experience issues or failures. To minimize the risk of downtime, it is important to properly maintain the device, including keeping it up to date with the latest software and firmware updates, and monitoring it for any signs of problems. It is also a good idea to have a plan in place for handling any issues that may arise, such as having spare equipment on hand or having a backup plan for connectivity.
General Information about this Cisco AIR-AP1562I-B-K9
- Manufacturer: Cisco
- Part Number or SKU# AIR-AP1562I-B-K9
- Product Line: Aironet
- Product Series: 1560
- Product Model: 1562I
- Product Type: Wireless Access Point
Technical Information of Wireless Access Point
- Wireless LAN Standard: IEEE 802.11ac
- Wireless Transmission Speed: 1.30 Gbit/s
- Frequency Band: 5 GHz, 2.40 GHz
- Total Number of Antennas: 6
- Number of Internal Antennas: 6
- MIMO Technology: Yes
- Beamforming Technology: Yes
Interfaces/Ports for 1.3GBPS Wireless AP
- Ethernet Technology: Gigabit Ethernet
- PoE (RJ-45) Port: Yes
- VGA: No
- HDMI: No
- USB: No
- Powerline: No
- Management Port: Yes
Networking
- Form Factor: External
- Connectivity Technology: Wireless
- Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2
- Network / Transport Protocol: L2TP, IPSec
- Frequency Band: 2.4 GHz, 5 GHz
- Encryption Algorithm: LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2
Features
- Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, ClientLink technology, Maximum Ratio Combining (MRC), 3T3R MIMO technology, cyclic shift diversity (CSD), Cisco Flexible Antenna Port technology, packet aggregation A-MPDU, packet aggregation A-MSDU
Antenna
- Antenna: Internal
- Directivity: Omni-directional
Expansion / Connectivity
- Interfaces: 1 x 1000Base-T – RJ-45 (WAN) 1 x – SFP (mini-GBIC) 1 x console – RJ-45
Environmental Parameters
- Min Operating Temperature: -40 °F
- Max Operating Temperature: 149 °F
Power Description
- Power Source: PoE
- Power Source: AC Adapter
Miscellaneous
- Compliant Standards: ANSI / IEEE 587 C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268.2003, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 328, EN 301
- 489-1, EN 301.893, EN 301489-17, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC OET Bulletin 65c, FCC Part
- 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-2, RSS-102, RSS-210, UL 60950-2
In summary, the Cisco AIR-AP1562I-B-K9 Aironet 1562I Wireless Access Point is a powerful and versatile solution for meeting the high-speed connectivity demands of today’s wireless world. Built upon the IEEE 802.11ac standard, it offers gigabit-speed data transfer, dual-band support, and advanced technologies like MIMO and Beamforming to optimize wireless performance. Its Power over Ethernet (PoE) support simplifies installation and makes it suitable for a wide range of deployment scenarios.
The Aironet 1562I plays a significant role in creating efficient wireless networks by providing high-performance connectivity, versatile deployment options, enhanced coverage and capacity, simplified management, and future-proofing capabilities. Whether you’re a business looking to improve productivity or an educational institution striving to deliver reliable connectivity to students, the Aironet 1562I is a valuable asset in ensuring seamless wireless access.
The Cisco AIR-AP1562I-B-K9 Aironet 1562I Wireless Access Point is a feature-rich solution that empowers organizations to stay connected, deliver high-speed services, and adapt to the evolving demands of wireless technology. Its innovative design and robust performance make it a reliable choice for those seeking to build efficient and resilient wireless networks.
