Description
GPU Compatibility

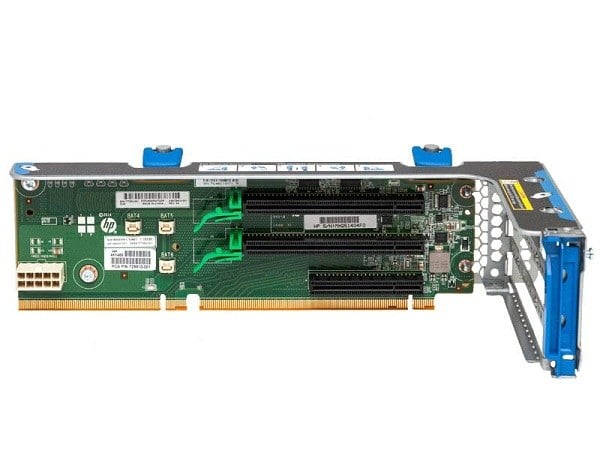

The installation and set-up instructions for the 777283-001 HPE DL380 Gen9 Secondary 3 Slot PCI-E GPU Ready Riser Kit are as follows:
- Power off the server and disconnect all cables.
- Remove the server access panel.
- Locate the expansion slots on the motherboard and identify the correct slot for the riser.
- Remove the filler panel or any other device that is occupying the expansion slot.
- Align the riser with the expansion slot and insert it firmly into place.
- Secure the riser to the server using the screw provided.
- Replace the server access panel and reconnect all cables.
- Power on the server and check that the riser is recognized and functioning properly.
Note: It is important to ensure that the server is compatible with the riser before attempting to set it up. The server should also have the latest BIOS and all necessary drivers installed.
It’s always recommended to consult the user manual that came along with the product to have a more specific instructions that can vary from product to product.
Expansion capabilities
The 777283-001 HPE DL380 Gen9 Secondary 3 Slot PCI-E GPU Ready Riser Kit provides additional expansion capabilities for the HPE DL380 Gen9 server.
This riser kit provides an additional three expansion slots, which are designed to accept PCI-Express (PCIe) cards. These expansion slots can be used to add a variety of different types of expansion cards to the server, such as additional graphics processing units (GPUs), network interface cards (NICs), or other types of peripheral cards.
The expansion slot of this riser kit are designed to support full-height, full-length cards, which allows the server to support a wide range of expansion cards.
The additional expansion slots provided by this riser kit allow the HPE DL380 Gen9 server to expand its capabilities and better serve the needs of the organization, whether it’s for additional graphics processing power, additional networking capabilities or other types of peripheral expansion.
Power Requirements
The power requirements for the 777283-001 HPE DL380 Gen9 Secondary 3 Slot PCI-E GPU Ready Riser Kit will depend on the specific expansion cards that are installed in the riser’s expansion slots.
The power requirements for the riser card itself are minimal, as it primarily acts as a connector between the server motherboard and the expansion cards. However, the expansion cards installed in the riser’s expansion slots will have their own power requirements.
For example, if a high-performance GPU is installed in one of the expansion slots, it will likely require a significant amount of power to operate. The power requirements for the GPU can be found in the GPU’s technical specifications, which should be consulted before installing the GPU in the riser.
It’s important to ensure that the server’s power supply has enough power to accommodate the power requirements of the expansion cards installed in the riser’s expansion slots. An inadequate power supply can result in system instability and damage to the expansion cards.
It’s always recommended to check the product’s official website and consult HPE’s documentation for the most up-to-date and accurate power requirements information.
General Information
- Manufacturer : HPE
- Part Number : 777283-001
- Type : Riser Ki
Technical specifications
The technical specifications for the 777283-001 HPE DL380 Gen9 Secondary 3 Slot PCI-E GPU Ready Riser Kit are as follows:
- Form Factor: Riser card
- Expansion Slots: 3 x full-height, full-length PCI-Express (PCIe) slots
- Connectors: 3 x PCIe slot connectors
- Compatibility: HPE DL380 Gen9 server
- Dimensions: 175.26mm x 30.48mm x 49.53mm
- Weight: 0.5 kg
- Operating temperature: 10 to 35 degree celsius
- Storage temperature: -40 to 70 degree celsius
- Operating Humidity: 10 to 90% non-condensing
- Operating Altitude: -304.8m to 3048m
- Storage Altitude: -304.8m to 12192m
- Operating Vibration: 0.26 Grms @5-500 Hz
- Storage Vibration: 1.04 Grms @5-500 Hz
- Operating Shock: 15G, 11ms, half-sine
- Storage Shock: 30G, 11ms, half-sine
Note: These specifications are subject to change and may vary depending on the specific configuration of the riser kit. It’s always recommended to check the product’s official website and consult HPE’s documentation for the most up-to-date and accurate technical specifications.
