Description
Overview of the Catalyst Switch

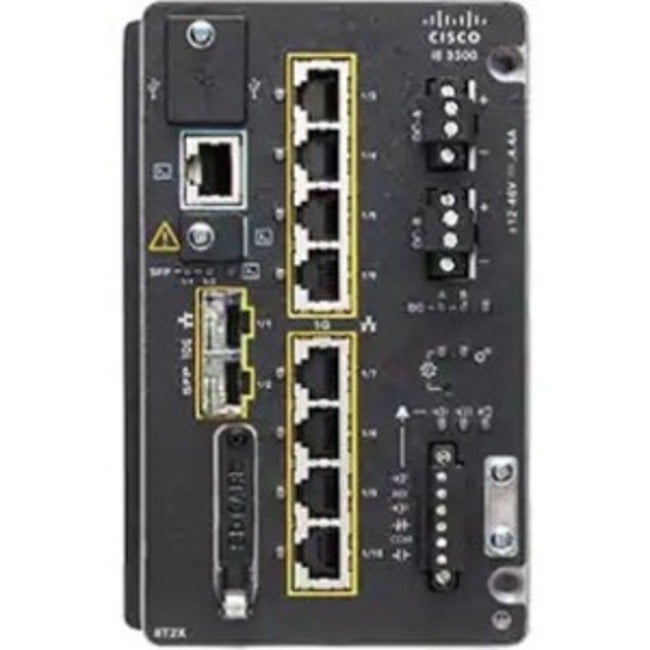

The Cisco Catalyst IE-3300-8T2X Ethernet Switch (IE-3300-8T2X-A) is a compact, industrial-grade switch that is designed for use in harsh industrial environments. It is part of the Cisco Industrial Ethernet 3000 series and is built to withstand extreme temperatures, vibration, and shock.
The IE-3300-8T2X-A has 8 Gigabit Ethernet ports and 2 10 Gigabit Ethernet ports. It also has a built-in power supply and can be powered using a wide range of voltage inputs. This makes it suitable for use in a variety of industrial settings, including oil and gas, manufacturing, and utilities.
One of the key features of the IE-3300-8T2X-A is its industrial-grade design. It is built to withstand extreme temperatures (-40 to 75°C), vibration (5Grms), and shock (50G) which makes it suitable for use in harsh industrial environments.
In addition, it also supports several advanced features such as Quality of Service (QoS), Link Aggregation Control Protocol (LACP), and Spanning Tree Protocol (STP). It also supports Cisco Discovery Protocol (CDP) and Simple Network Management Protocol (SNMP) for easy management and monitoring.
The IE-3300-8T2X-A also supports Cisco Industrial Network Director (IND), which is a cloud-based management platform that allows for easy monitoring and management of industrial networks. With IND, IT teams can easily monitor and manage their networks remotely and in real time, reducing downtime and increasing productivity.
Layer 3 Managed Switch
The Cisco IE-3300-8T2X-A is a Layer 3 (L3) managed switch, which means it can operate at both Layer 2 and Layer 3 of the OSI model. This enables it to make routing decisions and facilitate communication between different subnets or network segments. Layer 3 switches are essential for businesses with complex network infrastructures that require advanced routing capabilities.
10 Ethernet Ports
This switch comes equipped with 10 Ethernet ports, making it suitable for connecting a variety of network devices, such as computers, IP cameras, access points, and more. The abundance of ports ensures that you can easily expand your network and accommodate multiple devices without the need for additional switches.
10G Small Form-Factor Pluggable Plus
In addition to the 10 Ethernet ports, the Cisco IE-3300-8T2X-A features 2 Small Form-Factor Pluggable Plus (SFP+) ports. These ports offer flexibility for connecting to other networking equipment, such as fiber optic cables, allowing for high-speed data transmission and extended reach.
Rugged Design
The rugged design of the IE-3300-8T2X-A is one of its standout features. This switch is built to withstand harsh environmental conditions, including extreme temperatures, dust, and moisture. Its robust construction makes it ideal for deployment in outdoor settings, industrial plants, and other demanding locations.
Power Over Ethernet (PoE) Support
For businesses that require PoE functionality, the Cisco IE-3300-8T2X-A offers PoE support. This feature enables the switch to provide power to connected devices, such as IP phones and security cameras, over the Ethernet cables, simplifying the setup and reducing the need for separate power sources.
Efficient and Scalable Networking
The Cisco Catalyst IE-3300-8T2X Ethernet Switch (IE-3300-8T2X-A) is designed to provide efficient and scalable networking for industrial environments. Some of the ways in which it achieves this include:
- High-speed connectivity: The IE-3300-8T2X-A has 8 Gigabit Ethernet ports and 2 10 Gigabit Ethernet ports, which allows for high-speed connectivity to other devices and networks. This makes it ideal for use in environments where large amounts of data need to be transferred quickly and reliably.
- Link Aggregation: The switch supports Link Aggregation Control Protocol (LACP) which allows for the bundling of multiple physical links to form a single logical link, providing increased bandwidth and redundancy. This ensures that the network remains available even in case of a link failure.
- Quality of Service (QoS): The IE-3300-8T2X-A supports QoS, which allows for the management and prioritization of network traffic, ensuring that critical applications receive the bandwidth they need. This ensures that the network remains responsive even during periods of high traffic.
- Scalability: The IE-3300-8T2X-A can be used in conjunction with other Cisco Industrial Ethernet 3000 series switches, allowing for easy scalability as network requirements change. This ensures that the network can grow and evolve as needed to meet the changing needs of the environment.
- Easy management: The IE-3300-8T2X-A can be easily managed and configured using Cisco IOS Software, making it simple to set up and maintain. It also supports Cisco Industrial Network Director (IND), which is a cloud-based management platform that allows for easy monitoring and management of industrial networks.
- Security: The IE-3300-8T2X-A supports access control lists (ACLs), which can be used to filter and control network traffic based on specific criteria, such as IP address or port number. This helps to keep the network secure and protected from unauthorized access.
Advanced Network Management Features
The Cisco Catalyst IE-3300-8T2X Ethernet Switch (IE-3300-8T2X-A) includes a number of advanced network management features that allow for easy monitoring and configuration of the network:
- Cisco Industrial Network Director (IND): This is a cloud-based management platform that allows for easy monitoring and management of industrial networks. It provides a centralized, web-based interface for managing multiple Cisco Industrial Ethernet switches, routers, and access points. With IND, IT teams can easily monitor and manage their networks remotely and in real time, reducing downtime and increasing productivity.
- Simple Network Management Protocol (SNMP): The IE-3300-8T2X-A supports SNMP, which allows for the monitoring and management of network devices using network management systems (NMS). This makes it easy to collect and analyze performance data and to receive alerts when issues arise.
- Cisco Discovery Protocol (CDP): CDP allows for the discovery of other Cisco devices on the network, making it easy to identify and manage devices on the network. This helps to simplify the process of setting up and configuring the network.
- Quality of Service (QoS): QoS allows for the management and prioritization of network traffic, ensuring that critical applications receive the bandwidth they need. This ensures that the network remains responsive even during periods of high traffic.
- Access Control Lists (ACLs): The IE-3300-8T2X-A supports access control lists (ACLs), which can be used to filter and control network traffic based on specific criteria, such as IP address or port number. This helps to keep the network secure and protected from unauthorized access.
- Link Aggregation Control Protocol (LACP): LACP allows for the bundling of multiple physical links to form a single logical link, providing increased bandwidth and redundancy. This ensures that the network remains available even in case of a link failure.
- Spanning Tree Protocol (STP): STP helps to prevent loops in the network by ensuring that only one active path exists between two endpoints. This helps to improve network stability and availability.
Industrial Applications
The Cisco IE-3300-8T2X-A is specifically designed for industrial applications where durability and reliability are paramount. Here are some examples of industries and use cases where this rugged switch excels:
Manufacturing
Manufacturing environments often involve heavy machinery, dust, and extreme temperature variations. The IE-3300-8T2X-A can thrive in such conditions, ensuring that the network remains stable and responsive.
Oil and Gas
In the oil and gas industry, network equipment is subjected to harsh conditions, including exposure to potentially explosive atmospheres. This switch’s hazardous location certifications make it suitable for use in these challenging environments.
Transportation
For transportation infrastructure such as railways, roads, and ports, network connectivity is vital. The rugged design and wide operating temperature range of this switch make it an excellent choice for outdoor and transportation-related applications.
Mining
Mining operations often take place in remote and harsh locations. The Cisco IE-3300-8T2X-A can withstand extreme temperatures and dust, making it a reliable choice for maintaining network connectivity in mining environments.
Utilities
In the utility and energy sectors, network uptime is critical. The IE-3300-8T2X-A’s resilience to environmental stressors, such as extreme temperatures and humidity, ensures reliable network operation in utility applications.
General Information about this IE-3300-8T2X-A
- Manufacturer: Cisco
- Model Number or SKU# IE-3300-8T2X-A
- Product Line: Catalyst
- Product Series: IE3300
- Type: Networking
- Product Type: Ethernet Switch
Interfaces/Ports of 10 Ports Managed Switch
- Total Number of Network Ports: 10
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details: 8 x Gigabit Ethernet Network
- Port/Expansion Slot Details: 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported: Twisted Pair
- Media Type Supported: Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Network Technology: 10GBase-X
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 2
Network & Communication
- Layer Supported: 3
Power Description
- PoE (RJ-45) Port: No
- Power Source: DC
- Redundant Power Supply Supported: Yes
- Power Consumption: 28 W
In summary, the Cisco IE-3300-8T2X-A is a top-tier networking solution that combines cutting-edge technology with rugged durability, making it a standout choice for industries where network connectivity is critical in challenging environments.
The Cisco IE-3300-8T2X-A Catalyst IE3300 Rugged Series Layer (L3) Managed Switch is a robust and feature-rich networking solution designed for challenging industrial and outdoor environments. Its Layer 3 managed capabilities, extensive port options, rugged design, and comprehensive security features make it an excellent choice for various industries, including manufacturing, oil and gas, transportation, mining, and utilities.
With its outstanding performance and reliability, the switch can meet the demands of mission-critical applications while offering the flexibility and ease of installation required in diverse environments. Its certifications for hazardous locations, wide operating temperature range, and resistance to environmental stressors make it a trustworthy option for businesses seeking a long-lasting and resilient networking solution.
The Cisco IE-3300-8T2X-A brings the trusted Cisco brand into the world of rugged networking, and its reputation for high-quality products makes it a reliable choice for organizations that cannot compromise on network performance and reliability in demanding conditions. Whether you are a network administrator, an IT professional, or a business owner, this switch is worth considering for your networking infrastructure needs.
