Understanding the DS-X9232-256K9 Advanced Fibre Channel Switching Module
Fibre Channel technology serves as the backbone for storage area networks (SANs), enabling high-speed data transfer and connectivity between servers and storage devices. Within a SAN infrastructure, Fibre Channel switching modules play a crucial role in managing data traffic efficiently. Among these modules, the DS-X9232-256K9 stands out for its advanced features and high-performance capabilities.
In this description, we’ll delve into the DS-X9232-256K9, exploring its specifications, functionality, and benefits in detail. Whether you’re an IT professional seeking to enhance your understanding of Fibre Channel networking or a decision-maker evaluating network infrastructure options, this guide aims to provide valuable insights into this cutting-edge switching module.
Key Features and Specifications of Fibre Channel Switching Modules

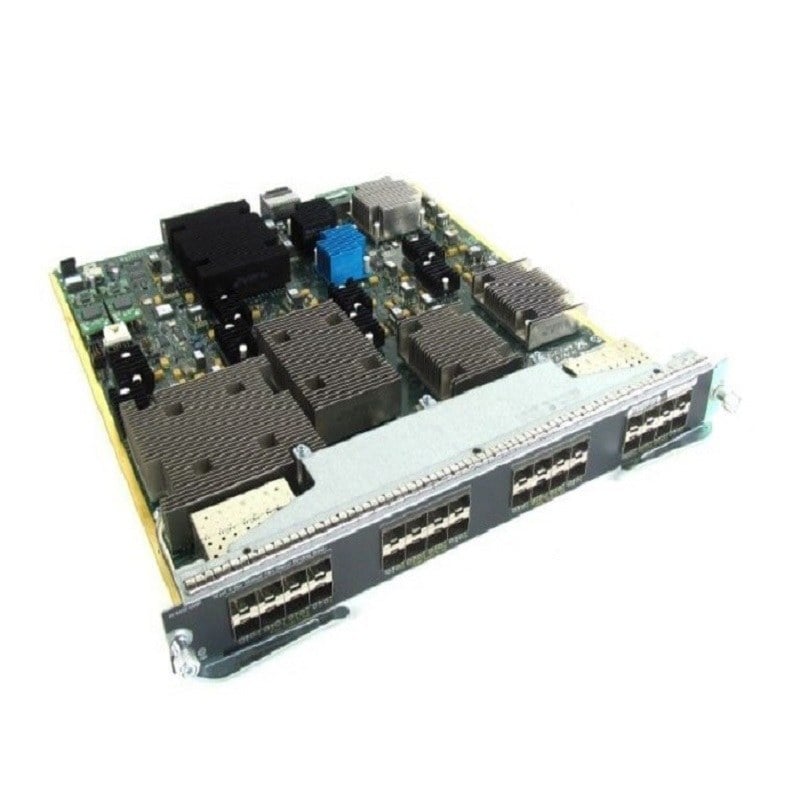

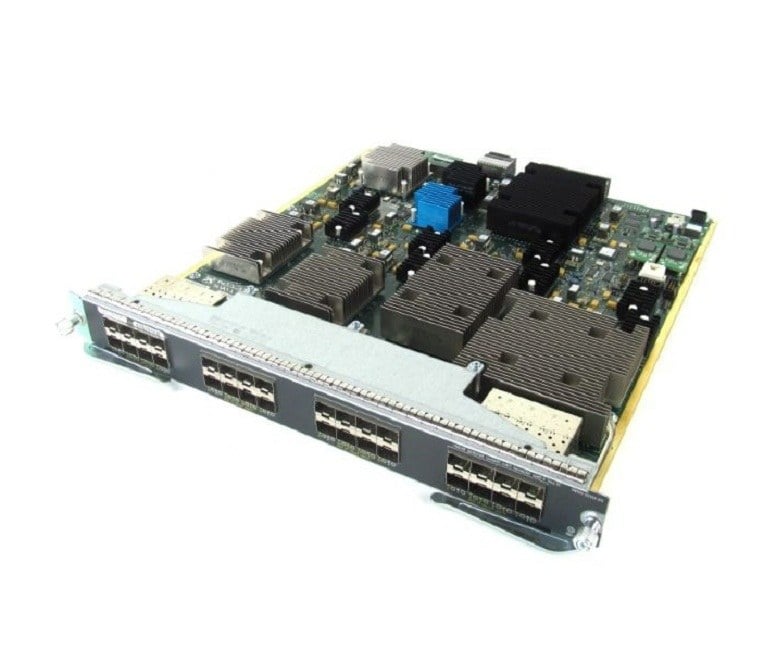

The DS-X9232-256K9 is a 32-port Fibre Channel switching module designed for use with multilayer director switches. Let’s break down its key features and specifications:
- Port Count: With 32 ports, this switching module offers ample connectivity options for SAN environments, allowing multiple devices to communicate simultaneously.
- Speed: Each port supports data transfer speeds of up to 8 Gigabits per second (GBPS), facilitating rapid data transmission and reducing latency.
- Hot-swappable Design: The DS-X9232-256K9 features hot-swappable functionality, enabling administrators to replace or upgrade modules without disrupting network operations. This enhances system reliability and minimizes downtime during maintenance activities.
- Multilayer Director Compatibility: Designed for compatibility with multilayer director switches, this module seamlessly integrates into existing SAN architectures, providing scalability and flexibility for expanding network infrastructure.
- Advanced Fibre Channel Protocol Support: The DS-X9232-256K9 supports advanced Fibre Channel protocols, ensuring compatibility with various storage and networking devices within the SAN ecosystem.
- High Performance: With its advanced switching technology, the DS-X9232-256K9 delivers high performance and throughput, optimizing data flow across the network and supporting bandwidth-intensive applications.
- Redundancy and Resilience: Built-in redundancy features, such as dual power supplies and hot-swappable components, enhance system resilience and minimize the risk of single points of failure.
Understanding Fibre Channel Technology
Before delving deeper into the DS-X9232-256K9, it’s essential to understand the fundamentals of Fibre Channel technology. Fibre Channel is a high-speed networking protocol commonly used in SAN environments to connect servers and storage arrays. Unlike traditional Ethernet-based networks, Fibre Channel operates independently of TCP/IP, offering dedicated, high-performance connectivity for storage traffic.
At its core, Fibre Channel relies on optical or copper cables to transmit data between devices. These cables can span considerable distances, making Fibre Channel ideal for large-scale SAN deployments. Moreover, Fibre Channel supports various topologies, including point-to-point, arbitrated loop, and switched fabric, providing flexibility in network design and configuration.
One of the key advantages of Fibre Channel is its low latency and high throughput, making it suitable for latency-sensitive applications such as database transactions, video editing, and real-time analytics. Additionally, Fibre Channel offers features like zoning and masking, which allow administrators to control access to storage resources and ensure data security within the SAN.
The DS-X9232-256K9 in Action: Deployment Scenarios and Use Cases
Now that we’ve covered the basics of Fibre Channel technology, let’s explore how the DS-X9232-256K9 can be deployed in real-world scenarios:
- Data Center Consolidation: In large-scale data centre environments, where multiple servers and storage arrays are interconnected, the DS-X9232-256K9 can serve as a central switching module, facilitating seamless communication between devices while optimizing resource utilization and reducing network complexity.
- High-Performance Computing: For organizations engaged in high-performance computing (HPC) tasks such as scientific simulations, financial modeling, or 3D rendering, the DS-X9232-256K9 provides the high-speed, low-latency connectivity required to support demanding workloads and accelerate data processing.
- Virtualized Environments: In virtualized environments powered by platforms like VMware vSphere or Microsoft Hyper-V, the DS-X9232-256K9 enables efficient storage provisioning and management, ensuring optimal performance and availability for virtual machines and their associated storage volumes.
- Disaster Recovery and Business Continuity: With its redundancy features and hot-swappable design, the DS-X9232-256K9 plays a critical role in disaster recovery and business continuity strategies, allowing organizations to replicate data between geographically dispersed sites and maintain seamless operations in the event of a hardware failure or natural disaster.
- Media and Entertainment: In media production environments where large files need to be transferred and edited in real time, the DS-X9232-256K9 ensures smooth workflow performance, enabling content creators to collaborate efficiently and deliver high-quality productions within tight deadlines.
- Financial Services: In the financial services industry, where high-frequency trading and real-time analytics are paramount, the DS-X9232-256K9 provides the low-latency connectivity required to execute trades swiftly and analyze market data with precision, giving organizations a competitive edge in the marketplace.
Maximizing Data Transfer Speeds with the MDS Switch Module
The DS-X9232-256K9 Cisco MDS 32 Ports 8GB FC Switch Module is a high-performance Fibre Channel switching module that is designed to provide fast and reliable data transfer speeds for storage area networks (SANs). It is compatible with the Cisco MDS 9500 Series Multilayer Directors and Cisco MDS 9200 Series Multilayer Fabric Switches.
The module has 32 8 Gbps Fibre Channel ports that can be configured for either point-to-point or fabric connections. It also supports Fibre Channel over Ethernet (FCoE) and Fibre Channel Forwarder (FCF) technologies, which allow for the convergence of Fibre Channel and Ethernet networks.
To maximize data transfer speeds, the module uses advanced features such as Quality of Service (QoS) and buffer-to-buffer credit flow control. QoS allows for prioritization of data traffic, ensuring that critical applications receive the bandwidth they need. Buffer-to-buffer credit flow control helps prevent data loss by monitoring the amount of data in transit and adjusting the flow of data accordingly.
The module also supports advanced data protection features such as Fibre Channel over IP (FCIP) and Fibre Channel over ATM (FCoA) technologies. FCIP allows for the extension of Fibre Channel storage over IP networks, while FCoA allows for the integration of Fibre Channel storage into ATM networks.
Efficient Network Management of 32 Ports Switch
The Efficient Network Management of the DS-X9232-256K9 Cisco MDS 32 Ports 8GB FC Switch Module is achieved through a variety of features and tools that allow administrators to monitor, configure, and troubleshoot the switch easily and effectively. Some of the key features include:
- Cisco Fabric Manager: This is a web-based management tool that allows administrators to monitor, configure, and troubleshoot the switch and its associated fabrics. It provides a graphical user interface (GUI) that makes it easy to navigate and access various features and settings.
- Cisco SAN-OS: This is the operating system that runs on the switch and provides a variety of features and tools that allow administrators to manage and troubleshoot the switch. It includes a command-line interface (CLI) that can be used to access various features and settings.
- Port Analyzer: This feature allows administrators to monitor and troubleshoot the switch’s ports. It provides detailed information about the status of each port, including the number of packets transmitted and received, the number of errors, and the number of collisions.
- Performance Monitoring: The switch provides real-time performance monitoring and reporting capabilities that allow administrators to monitor the switch’s performance and identify any potential issues. This includes monitoring the switch’s CPU and memory usage, as well as monitoring the traffic on the switch’s ports.
- Security Features: The switch includes a variety of security features that help protect against unauthorized access and data breaches. These include access control lists (ACLs) and secure shell (SSH) access.
Quality of Service (QoS) and Traffic Management
The Quality of Service (QoS) feature of the DS-X9232-256K9 Cisco MDS 32 Ports 8GB FC Switch Module allows administrators to prioritize different types of traffic on the network. This is done by assigning different levels of priority to different types of traffic, such as voice, video, and data. This allows critical applications to receive higher priority, ensuring that they receive the necessary bandwidth and do not suffer from delays or dropped packets.
The Traffic Management feature of the DS-X9232-256K9 Cisco MDS 32 Ports 8GB FC Switch Module allows administrators to monitor and control the flow of traffic on the network. This is done by setting up policies that dictate how different types of traffic are handled. For example, administrators can set up policies that limit the amount of bandwidth available to certain types of traffic, or that prioritize certain types of traffic over others.
In addition, the DS-X9232-256K9 Cisco MDS 32 Ports 8GB FC Switch Module also includes advanced features such as Quality of Service (QoS) and Traffic Management. These features allow administrators to prioritize different types of traffic on the network, ensuring that critical applications receive the necessary bandwidth and do not suffer from delays or dropped packets. Additionally, the Traffic Management feature allows administrators to monitor and control the flow of traffic on the network, setting up policies that dictate how different types of traffic are handled. This helps to ensure that the network is running smoothly and that all users have access to the resources they need.
Key Information about the Cisco 32-port Fibre Channel Switching Module
- Manufacturer: Cisco
- Model Number or SKU# DS-X9232-256K9
- Product Series: 9000
- Product Name: 32-Port 8-GBPS Advanced Fibre Channel Switching Module
- Product Type: Switch Fabric Module
Interfaces/Ports of 8 GBPS Switch Fabric Module
- Total Number of Ports: 32
- Connector Typ: DB-9
- Interfaces/Ports Details: 32 x Fiber Channel Network
- Interfaces/Ports Details: DB-9 Management
- Interfaces/Ports Details: RS-232 Management
- Form Factor: Hot-swappable
Media & Performance of Switch Fabric Module
- Ethernet Technology: 8 Gigabit Ethernet
- Network Technology: Fiber Channel
Miscellaneous
- Compatibility: MDS 9000 Series Multilayer Switches
In general, the DS-X9232-256K9 represents a powerful solution for organizations seeking to leverage the performance and reliability of Fibre Channel technology in their SAN environments. With its advanced features, high-speed connectivity, and seamless integration capabilities, this switching module enables businesses to optimize their storage infrastructure, enhance application performance, and meet the demands of modern data-centric workflows.
Whether deployed in data centres, HPC clusters, virtualized environments, or specialized industries like media and finance, the DS-X9232-256K9 plays a vital role in driving innovation, efficiency, and competitiveness. By understanding its capabilities and deploying it strategically, organizations can unlock the full potential of Fibre Channel networking and position themselves for success in an increasingly data-driven world.
